NAGIN1325E 3-Axis CNC Machine with Auto Load/Unload System
NAGIN-1325E
Detailed Description

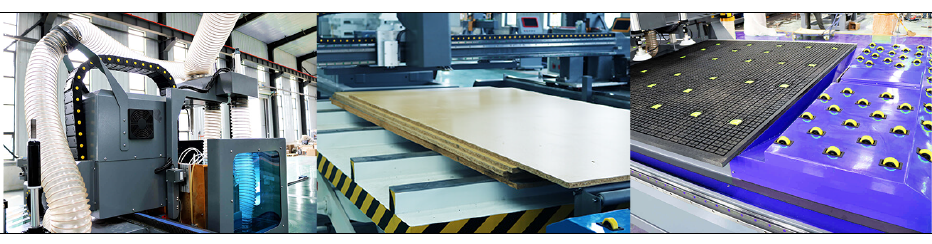

The 1325E is a compact 3‑axis CNC machine featuring an automatic panel load/unload system. It’s equipped with a 9 kW HSD ISO30 electrospindle and 12‑position ATC, nine vertical drilling spindles (5+4), a six‑zone vacuum table with a 3 kW vacuum pump and accessories, TBI 25 mm linear guides with dust seals, X/Y helical gear 2M, and Z‑axis 2510 ball screw. Taiwan Syntec 60W‑E control with English GUI and MPG handwheel, Yaskawa servos, and Delta VFD‑B inverter deliver ±0.02 mm/2000 mm accuracy, rapid feed up to 80 m/min, cutting speed 70 m/min, and load/unload at 15 m/min. CE‑compliant, 3‑year warranty.
The 1325E is a compact 3‑axis CNC machine featuring an automatic panel load/unload system. It’s equipped with a 9 kW HSD ISO30 electrospindle and 12‑position ATC, nine vertical drilling spindles (5+4), a six‑zone vacuum table with a 3 kW vacuum pump and accessories, TBI 25 mm linear guides with dust seals, X/Y helical gear 2M, and Z‑axis 2510 ball screw. Taiwan Syntec 60W‑E control with English GUI and MPG handwheel, Yaskawa servos, and Delta VFD‑B inverter deliver ±0.02 mm/2000 mm accuracy, rapid feed up to 80 m/min, cutting speed 70 m/min, and load/unload at 15 m/min. CE‑compliant, 3‑year warranty.
Brand: NAGIN
Control system: Syntec
Machine type: 3-axis CNC мachine
Technical Specifications
- Load/unload: 15 m/min
- Work area: 1300×2500×200 mm (4×8 ft); options: 4×4, 5×10, 7×10 ft

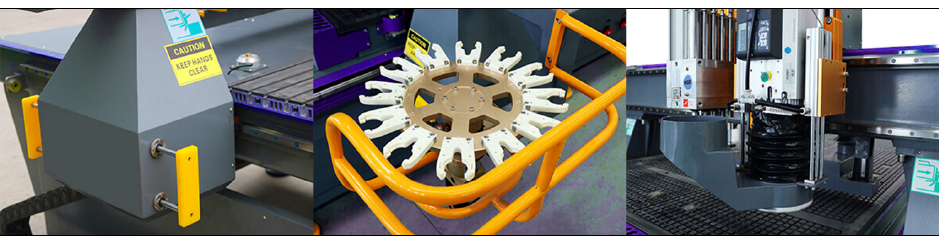

- Spindle: HSD 9 kW ISO30, 12 positions, air‑cooled
- Drilling heads: 9 vertical (5+4)
- Control: Syntec 60W‑E; servos: Yaskawa; VFD: Delta VFD‑B
- Guides: TBI 25 mm with dust seals
- Drives: X/Y gear 2M; Z ball screw 2510
- Speeds: rapid 80 m/min; cutting 70 m/min
- Power: AC 380 V, 50 Hz, 3 phase
- Accuracy: ±0.02 mm/2000 mm
