BACCI DOUBLE.JET 12‑Axis CNC Machine
BACCI-DOUBLE-JET
Detailed Description
BACCI DOUBLE.JET is a one-of-a-kind dual-station CNC center enabling simultaneous machining of two parts. Its twin-gantry design with 6 + 6 interpolated axes halves cycle times by working on separate tasks in parallel. Mobile platforms equipped with pneumatic clamps and angled stops ensure rock-solid part holding, while automatic hopper feeders on linear guides deliver parts every 3.5 s for true lights-out operation. The T2+2 cross-spindle option handles complex profiles at double throughput, and the welded steel frame maintains accuracy under high dynamics.
BACCI DOUBLE.JET is a one-of-a-kind dual-station CNC center enabling simultaneous machining of two parts. Its twin-gantry design with 6 + 6 interpolated axes halves cycle times by working on separate tasks in parallel. Mobile platforms equipped with pneumatic clamps and angled stops ensure rock-solid part holding, while automatic hopper feeders on linear guides deliver parts every 3.5 s for true lights-out operation. The T2+2 cross-spindle option handles complex profiles at double throughput, and the welded steel frame maintains accuracy under high dynamics.
Brand: BACCI
Machine type: 5-axis CNC мachine
Technical Specifications
- Controlled axes: 6 + 6 CNC interpolated
- Stations: 2 independent
- Working area (X/Y/Z) each: 1700 / 2400 / 650 mm (option: 2950 × 1800 × 650 mm)
- A-Axis: unlimited rotation
- B-Axis: ±130° (260° total)

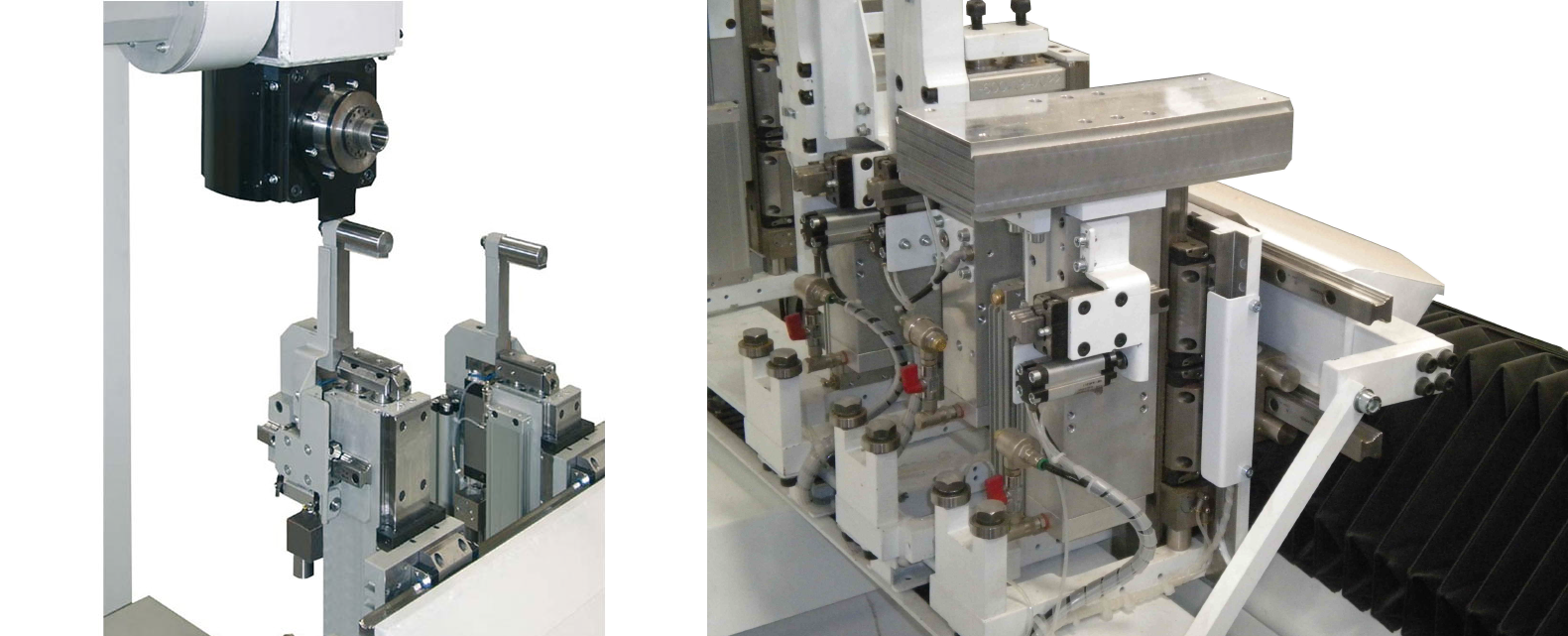

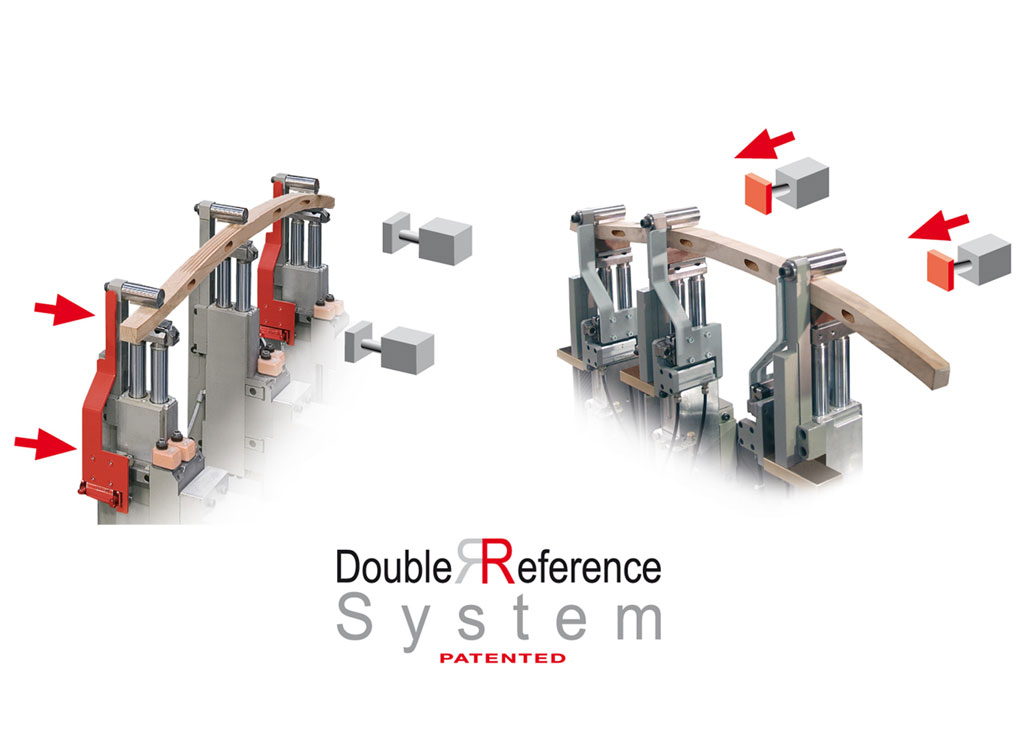

- Clamping: pneumatic clamps, height-adjustable, angled stops
- Loader: hopper feeder, 3.5 s cycle, 1200 mm unload height, max section 100 × 60 mm

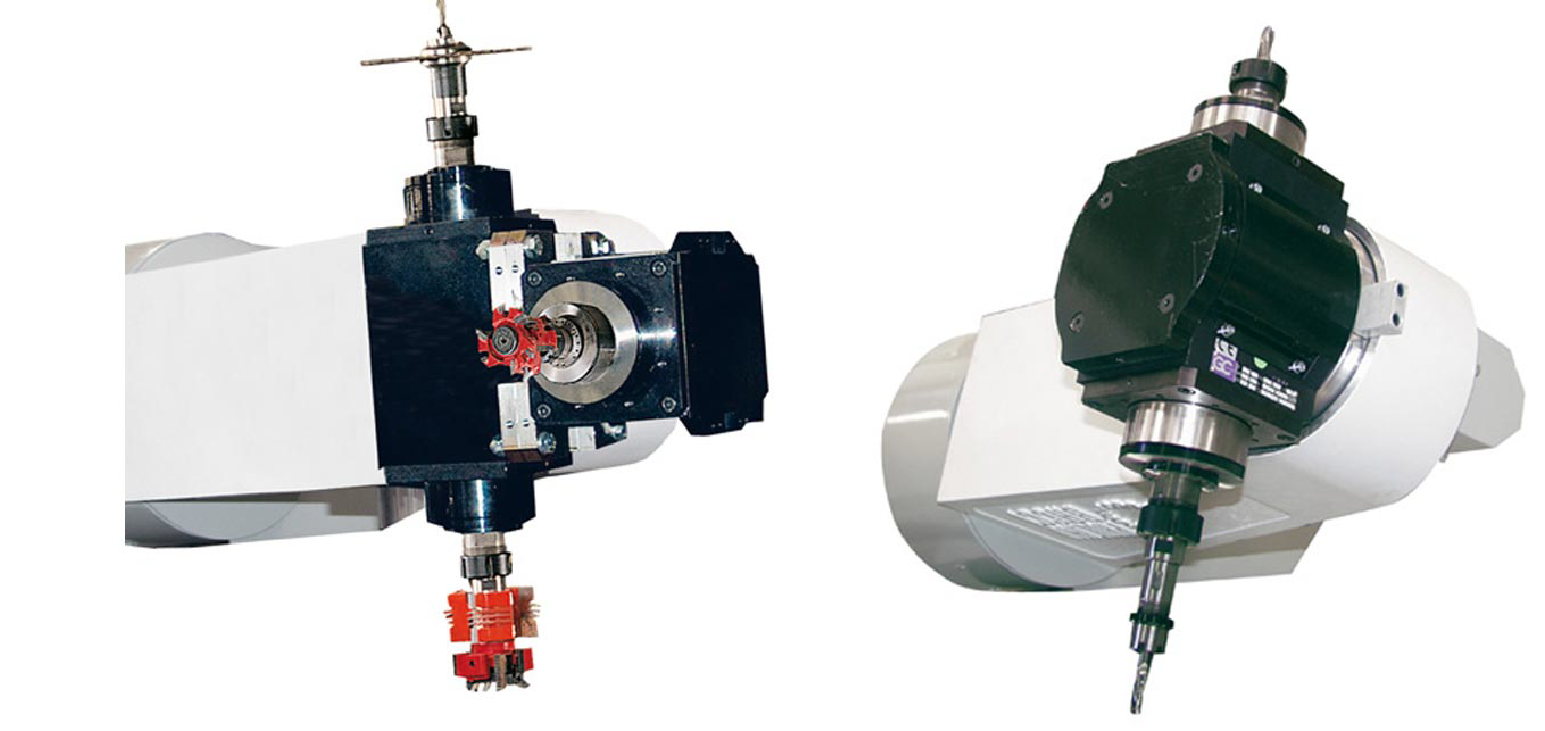

- Heads: T2 double-spindle or T2+2 cross-spindle configuration
- Max feed rates: 20 m/min
- Positioning accuracy: ±0.02 mm/2000 mm
- Control system: CE-certified CNC with network capability
- Power supply: AC 380 V, 3-phase
