NAGIN 1325CE 5‑Axis CNC Machine with Automatic Tool Changer
NAGIN-1325CE-5AX
Detailed Description
NAGIN 1325CE 5-AXIS — a versatile machining center with Automatic Tool Changer designed for peak performance, precision, and reliability. Perfect for working with the hardest and most delicate materials—from granite and marble to composites and aluminum. Constant Tip Speed Machining automatically adjusts feed rates, while Volumetric 3D Laser and Linear Compensation eliminate positional errors throughout the work envelope. Fixture Placement Compensation and Tip Center Rotation ensure perfect program-to-part alignment. A robust 9 kW spindle, Yaskawa servos, and Delta inverter, combined with automatic lubrication and tool sensing, minimize downtime and operator intervention for true around-the-clock operation.
NAGIN 1325CE 5-AXIS — a versatile machining center with Automatic Tool Changer designed for peak performance, precision, and reliability. Perfect for working with the hardest and most delicate materials—from granite and marble to composites and aluminum. Constant Tip Speed Machining automatically adjusts feed rates, while Volumetric 3D Laser and Linear Compensation eliminate positional errors throughout the work envelope. Fixture Placement Compensation and Tip Center Rotation ensure perfect program-to-part alignment. A robust 9 kW spindle, Yaskawa servos, and Delta inverter, combined with automatic lubrication and tool sensing, minimize downtime and operator intervention for true around-the-clock operation.
Brand: NAGIN
Control system: Syntec
Machine type: 5-axis CNC мachine
Technical Specifications
- Working Area (X × Y × Z): 1300 × 2500 × 600 mm (4 × 8 ft)
- Materials: granite, marble, limestone, slate, travertine, basalt, wood, aluminum, composites
- Spindle: HQD 9.0 kW air-cooled, ISO30, 8-position ATC
- Tool Changer: 8 positions; max Ø 82 mm (165 mm on adjacent empty), max length 280 mm, max weight 12 lb (5.4 kg) each
- Feed Rates: X/Y – 3150 ipm (~80 m/min), Z – 735 ipm (~18.7 m/min), A/C – 82.5 °/sec; Acc/Dec – 205 in/s²
- Max. Rapid Traverse: 90 m/min; Working Speed: 70 m/min
- Positioning Accuracy: ±0.02 mm/2000 mm

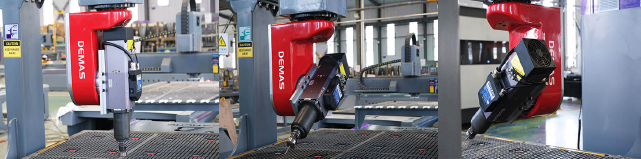

- A-Axis (B): ±120°; C-Axis: ±213° (up to 400°)

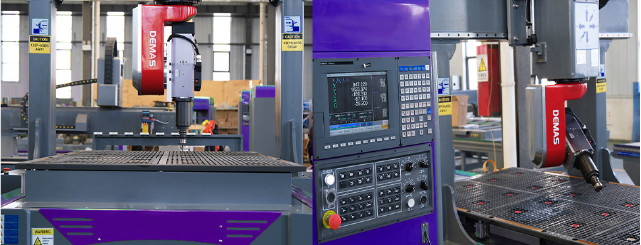

- Control System: Taiwan Syntec 610MA (RTCP, online/network, G-code, USB)
- Power Supply: AC 380 V, 3 phase, 50/60 Hz; Inverter: Delta MS 11 kW with brake
- Drives & Rails: Yaskawa 1300 W servos with brakes; X/Y – rack & pinion; Z – Taiwan TBI ball screw; Taiwan TBI Square 30 rails
- Table: vacuum table or T-slot table; supports custom fixtures
- Auto-Lubrication & Tool Sensor: one-touch maintenance
- Limit Switches: Omron (Japan)
- Operating Environment: −20 °C … +45 °C; 5 % … 75 % RH
- Warranty: 3 years
