BACCI MASTER.TGV 6-Axis CNC Machine
BACCI-MASTER-TGV
Detailed Description
The BACCI MASTER.TGV 6‑axis CNC machining center sets the standard for rigidity, precision, and versatility. Its ultra‑rigid gantry frame and six interpolated axes make it perfect for complex 3D machining of furniture components, doors, staircases, musical instruments, and custom molds. The OSAI digital control system with PC office and exclusive PITAGORA software ensures rapid program setup, optimized toolpaths, and collision avoidance. Dual steel‑rail TGV tables, automatic tool changing, and vacuum clamping deliver uninterrupted production with minimal downtime. Ideal for small to medium enterprises tackling the most ambitious machining projects.
The BACCI MASTER.TGV 6‑axis CNC machining center sets the standard for rigidity, precision, and versatility. Its ultra‑rigid gantry frame and six interpolated axes make it perfect for complex 3D machining of furniture components, doors, staircases, musical instruments, and custom molds. The OSAI digital control system with PC office and exclusive PITAGORA software ensures rapid program setup, optimized toolpaths, and collision avoidance. Dual steel‑rail TGV tables, automatic tool changing, and vacuum clamping deliver uninterrupted production with minimal downtime. Ideal for small to medium enterprises tackling the most ambitious machining projects.
Brand: BACCI
Control system: Osai
Machine type: 6-axis CNC мachine
Key Specifications of the BACCI MASTER.TGV
- Interpolated Axes: 6 (X, Y, Z, A, B, C)
- Working Envelope (X × Y × Z): 3000 × 1800 × 750 mm (standard)

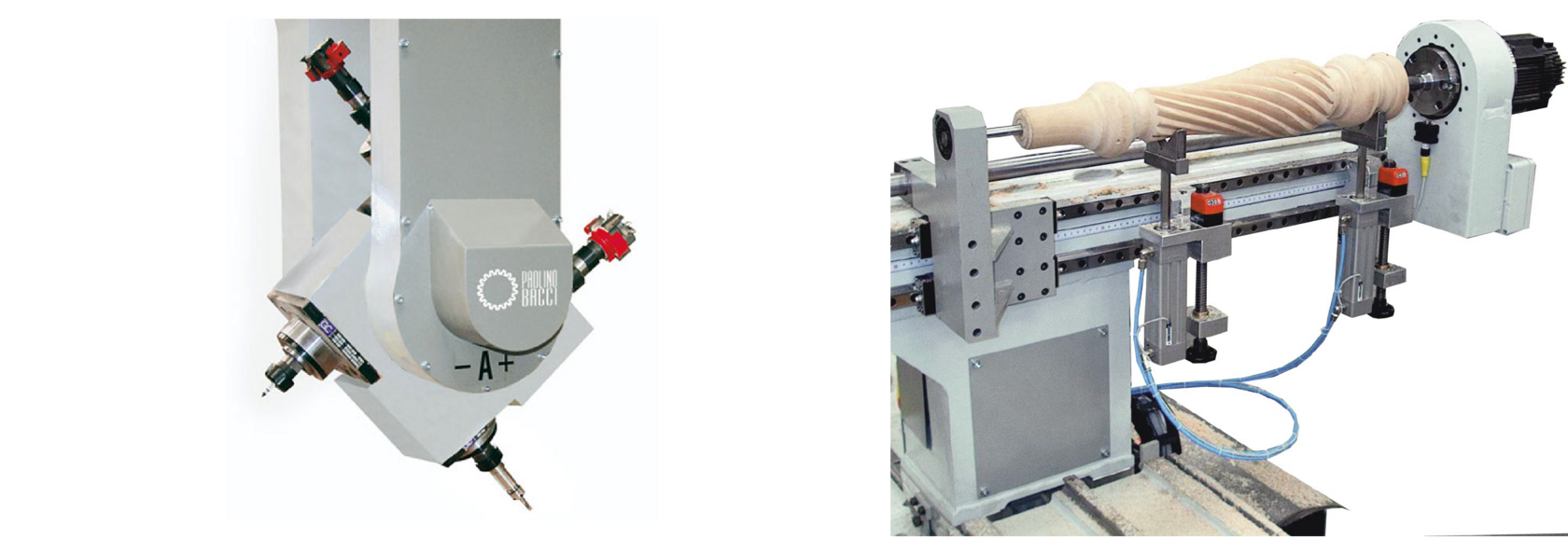

- Spindle: 13.6 HP (10 kW) HSK63F, up to 24,000 RPM, ceramic bearings
- Control System: OSAI full‑digital, PC office, USB interface
- Tool Changer: 8 positions (optional 12), turret outside machining area

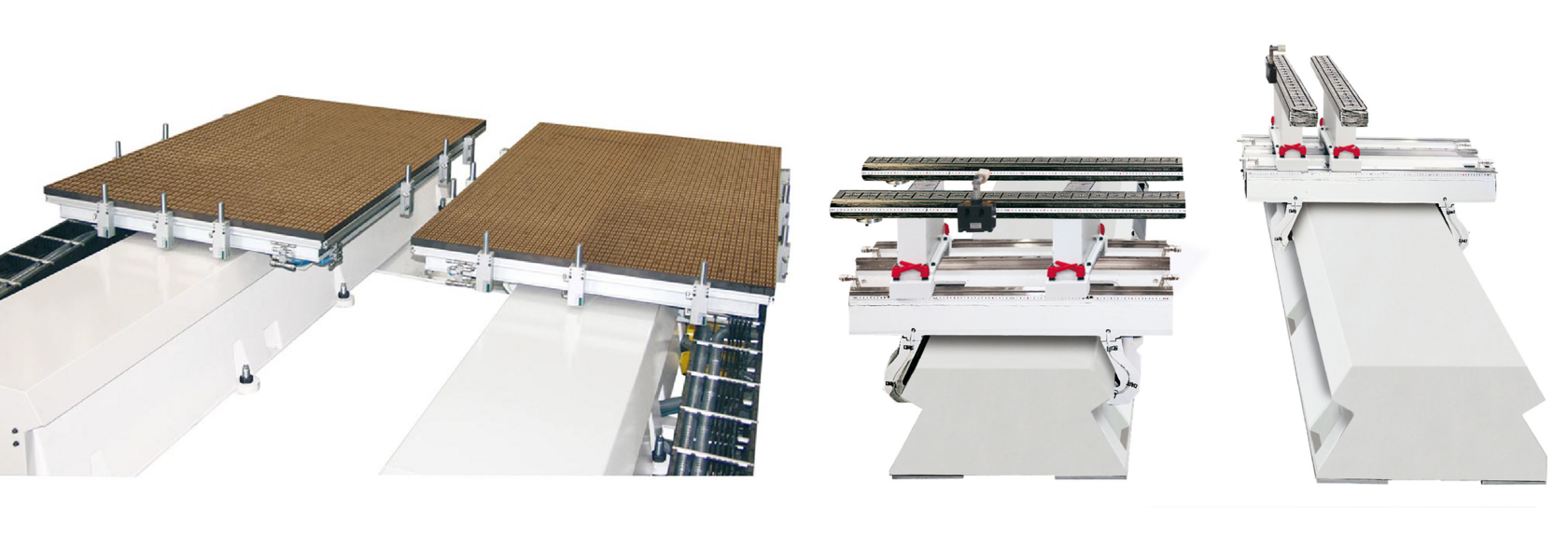

- Tables: 2 TGV‑type steel rails (1170 mm wide), tubular structure, vacuum + M8 threaded holes
- Clamping: 6 pneumatic jig‑less clamps, adjustable height and tilt
- Vacuum System: 2 × 165 m³/h vacuum pumps
- Drives & Electronics: dual inverters for spindles, cabinet air‑conditioning unit
- Lubrication: automatic, one‑touch maintenance
- Software: PITAGORA CAM with path optimization and collision check
- Power Supply: AC 380 V / 50 Hz / 3 phase
- Certifications & Warranty: CE, ISO 9001; 1–3 year warranty (per configuration)
