BACCI MASTER.FLAT 6-Axis CNC Machine
BACCI-MASTER-FLAT
Detailed Description
BACCI MASTER.FLAT is a high-performance 6-axis CNC machining center featuring an ultra-rigid gantry structure designed for the most demanding panel and three-dimensional work. Two independent FLAT vacuum tables in various sizes allow simultaneous processing of multiple workpieces, while the multi-spindle operating unit with fast tool change minimizes downtime during setups. The folding working head and unlimited B-axis rotation ensure precise and efficient machining of panels, furniture components (chairs, tables, cabinets), stair parts, musical instruments, molds, and countless other applications
BACCI MASTER.FLAT is a high-performance 6-axis CNC machining center featuring an ultra-rigid gantry structure designed for the most demanding panel and three-dimensional work. Two independent FLAT vacuum tables in various sizes allow simultaneous processing of multiple workpieces, while the multi-spindle operating unit with fast tool change minimizes downtime during setups. The folding working head and unlimited B-axis rotation ensure precise and efficient machining of panels, furniture components (chairs, tables, cabinets), stair parts, musical instruments, molds, and countless other applications
Brand: BACCI
Control system: Osai
Machine type: 6-axis CNC мachine
Key Specifications of the BACCI MASTER.FLAT
- Number of controlled axes: 6
- Longitudinal X-axis travel: from 3 500 mm
- Transversal Y-axis travel: 1 800 / 2 200 / 2 600 mm
- Vertical Z-axis travel: 750 / 950 / 1 130 mm
- B-axis: unlimited rotation

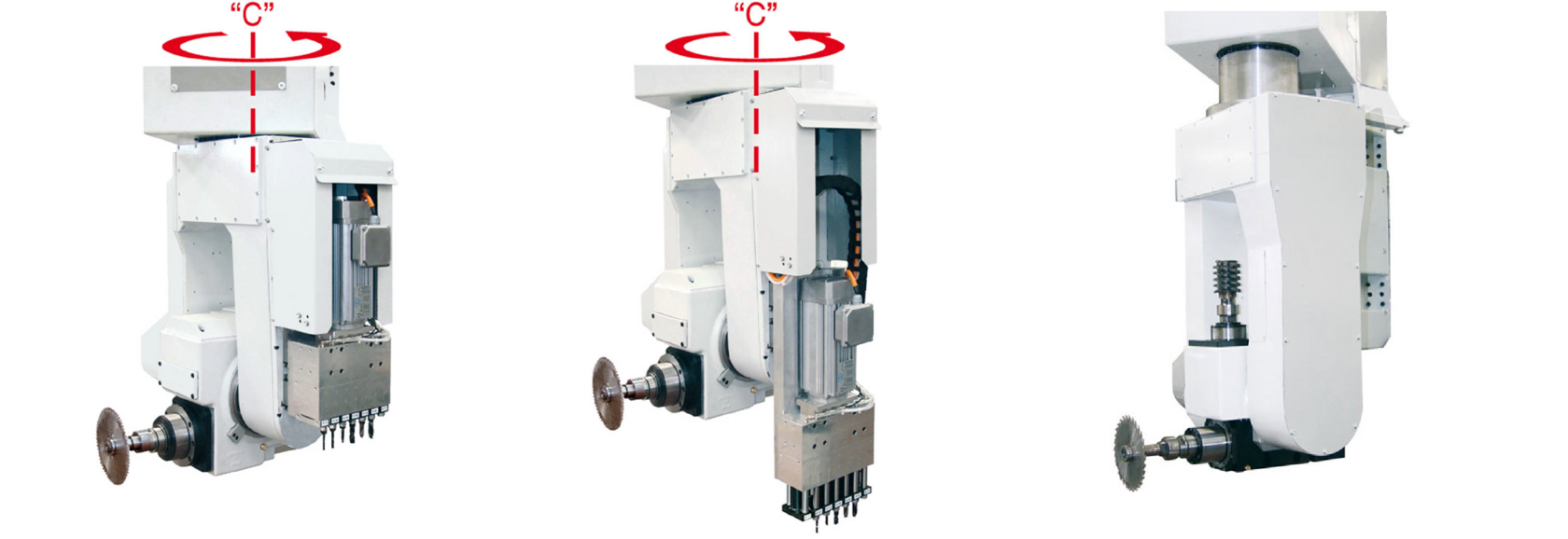

- C-axis: up to 400°

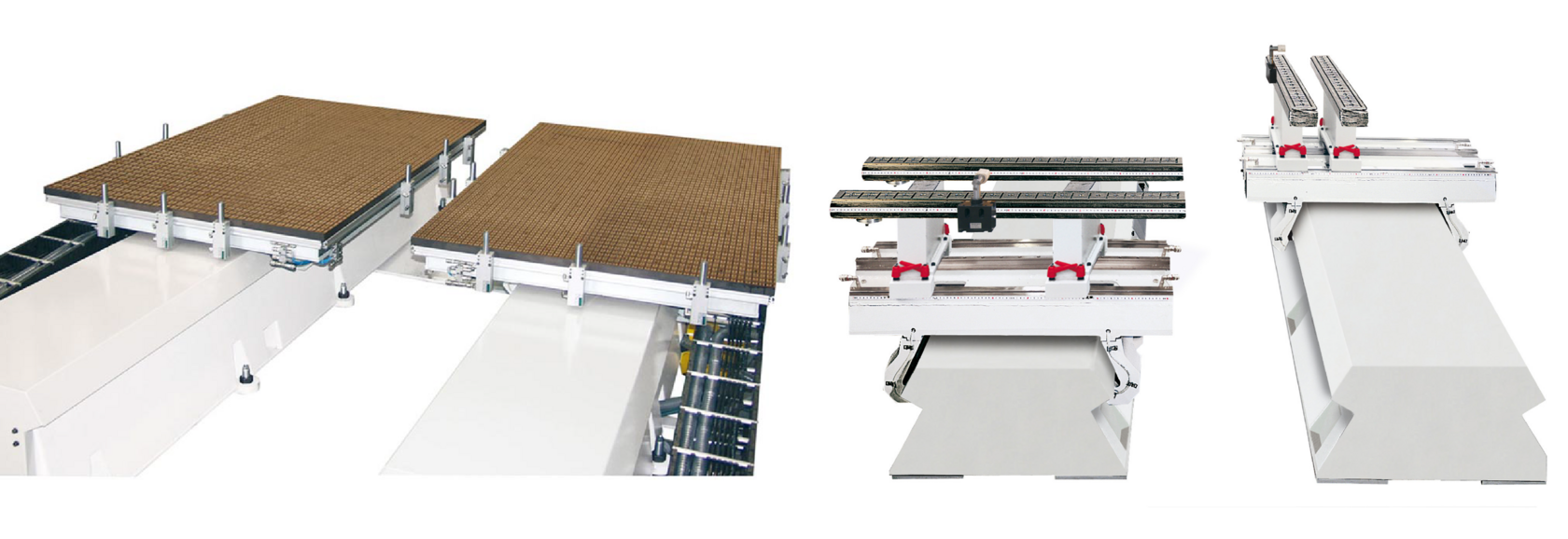

- Two independent FLAT working tables (multiple size options)

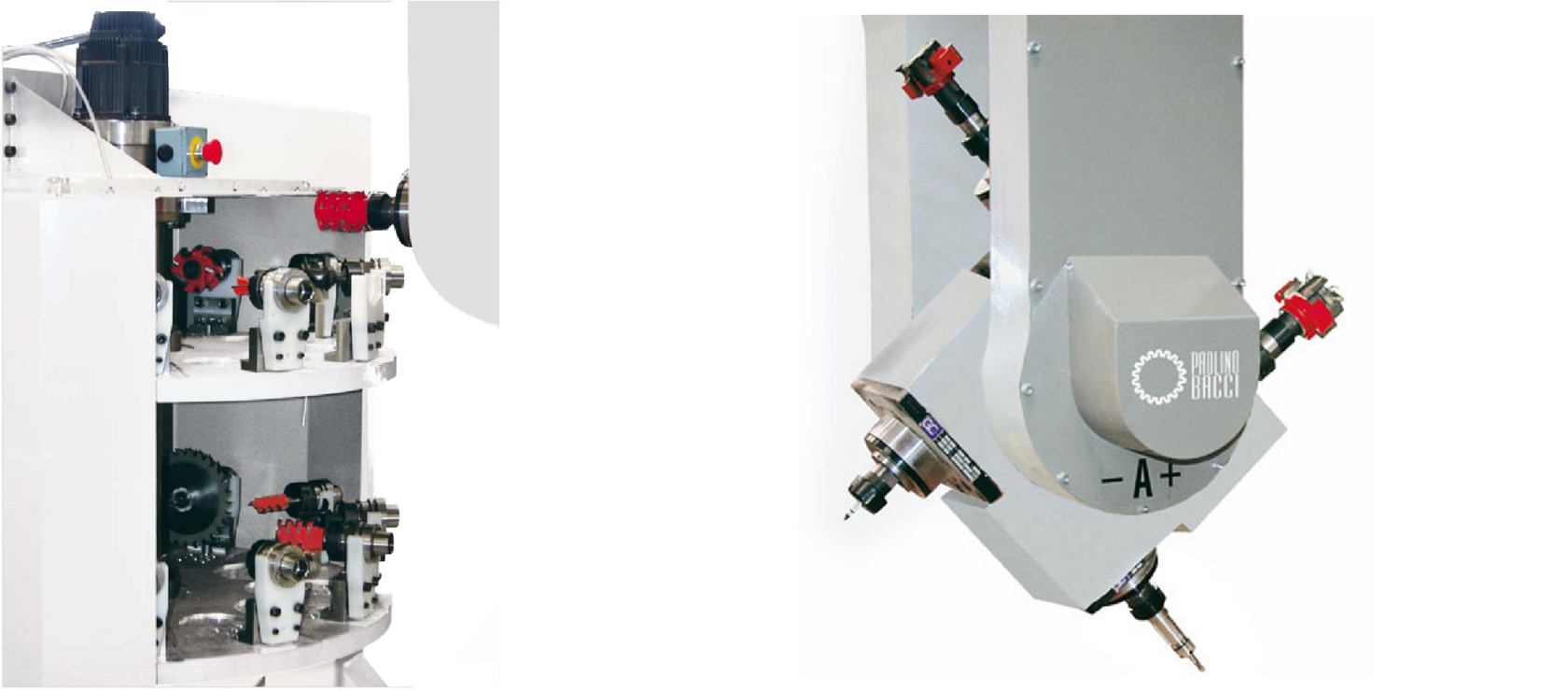

- Multi-spindle operating unit with automatic tool change

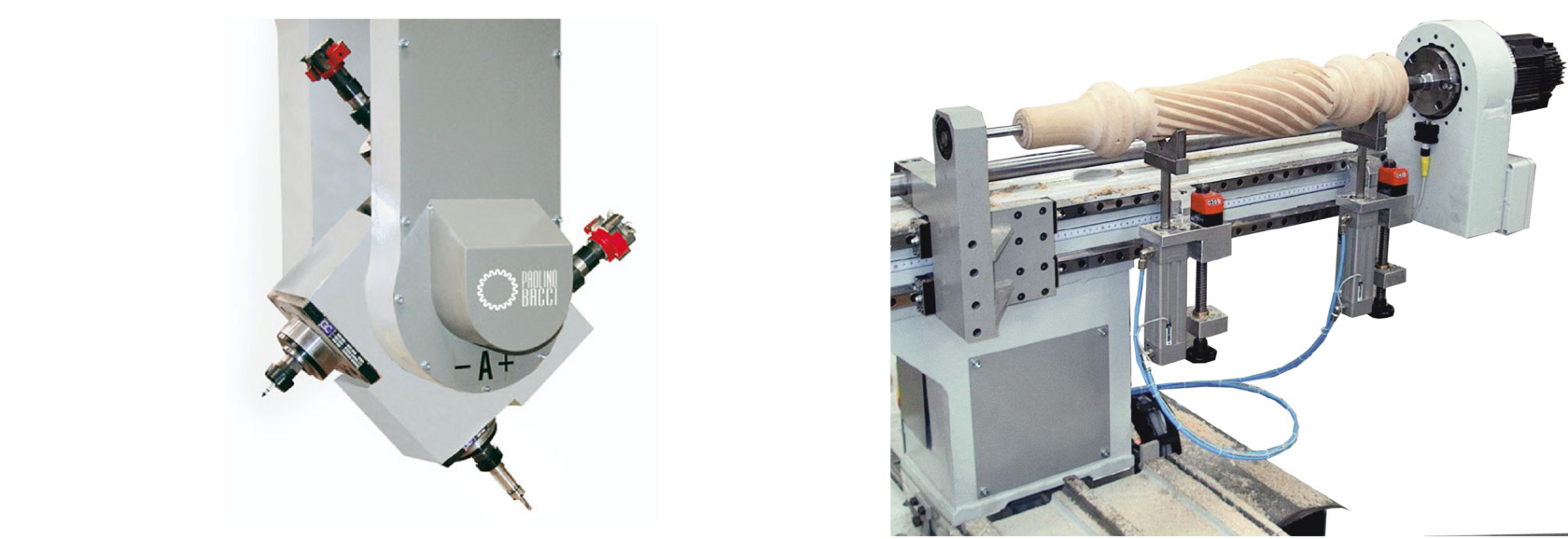

- Folding (FOLDING) working head for complex geometries
- Ultra‑rigid aluminum portal frame for maximum precision and durability
- Working area: 3000×1800×750 mm
- B/C axes: unlimited / ±200°
- Speeds: up to 1 m/s (X/Y/Z), up to 12 000°/min (A/C)
- Vacuum: 4 cups; pneumatic clamps 4 cyl.
- Interface: USB, G‑code
- Temp: −20…+45 °C; humidity 5–75 %
