NAGIN D‑SERIES 1330 5‑Axis CNC Machine with Dual Worktable
NAGIN-D1330-5AX
Detailed Description
The NAGIN 1325D 5AXIS CNC router is engineered for uncompromising precision and versatility, effortlessly machining granite, marble, limestone, slate, travertine, basalt, wood, aluminum, and composites. Powered by a 9 kW Italy HITECO air‑cooled spindle and Japanese Yaskawa servos, it maintains a constant cutting speed at any depth through its Constant Tip Speed Machining feature. Volumetric 3D Laser and Linear Compensation ensure flawless positioning across the 1300×2500×600 mm work envelope, while Fixture Placement Compensation and Tip Center Rotation automatically align programs to any fixture and keep the tool tip centered during complex multi‑axis moves. Dual T‑slot tables with vacuum clamping and one‑touch auto‑lubrication minimize downtime, and the advanced Taiwan Syntec 610MA control provides seamless USB and network connectivity. With a heavy‑duty frame, active safety system, and comprehensive service options, the NAGIN 1325D 5AXIS is the perfect solution for small to medium manufacturers demanding speed, quality, and repeatability.
The NAGIN 1325D 5AXIS CNC router is engineered for uncompromising precision and versatility, effortlessly machining granite, marble, limestone, slate, travertine, basalt, wood, aluminum, and composites. Powered by a 9 kW Italy HITECO air‑cooled spindle and Japanese Yaskawa servos, it maintains a constant cutting speed at any depth through its Constant Tip Speed Machining feature. Volumetric 3D Laser and Linear Compensation ensure flawless positioning across the 1300×2500×600 mm work envelope, while Fixture Placement Compensation and Tip Center Rotation automatically align programs to any fixture and keep the tool tip centered during complex multi‑axis moves. Dual T‑slot tables with vacuum clamping and one‑touch auto‑lubrication minimize downtime, and the advanced Taiwan Syntec 610MA control provides seamless USB and network connectivity. With a heavy‑duty frame, active safety system, and comprehensive service options, the NAGIN 1325D 5AXIS is the perfect solution for small to medium manufacturers demanding speed, quality, and repeatability.
Machine type: 5-axis CNC мachine
Control system: Syntec
Brand: NAGIN
Key Specifications of the NAGIN 5‑Axis Series
- Working Envelope (X×Y×Z): 1300 × 2500 × 600 mm (4 × 8 ft)
- Spindle: 9.0 kW Italy HITECO air‑cooled; 6000–24,000 RPM
- Drive System: Japanese Yaskawa servo motors & drivers
- Control System: Taiwan Syntec 610MA (G‑code, USB, network)
- X/Y Transmission: German helical rack & pinion; Z: Taiwan TBI ball screw

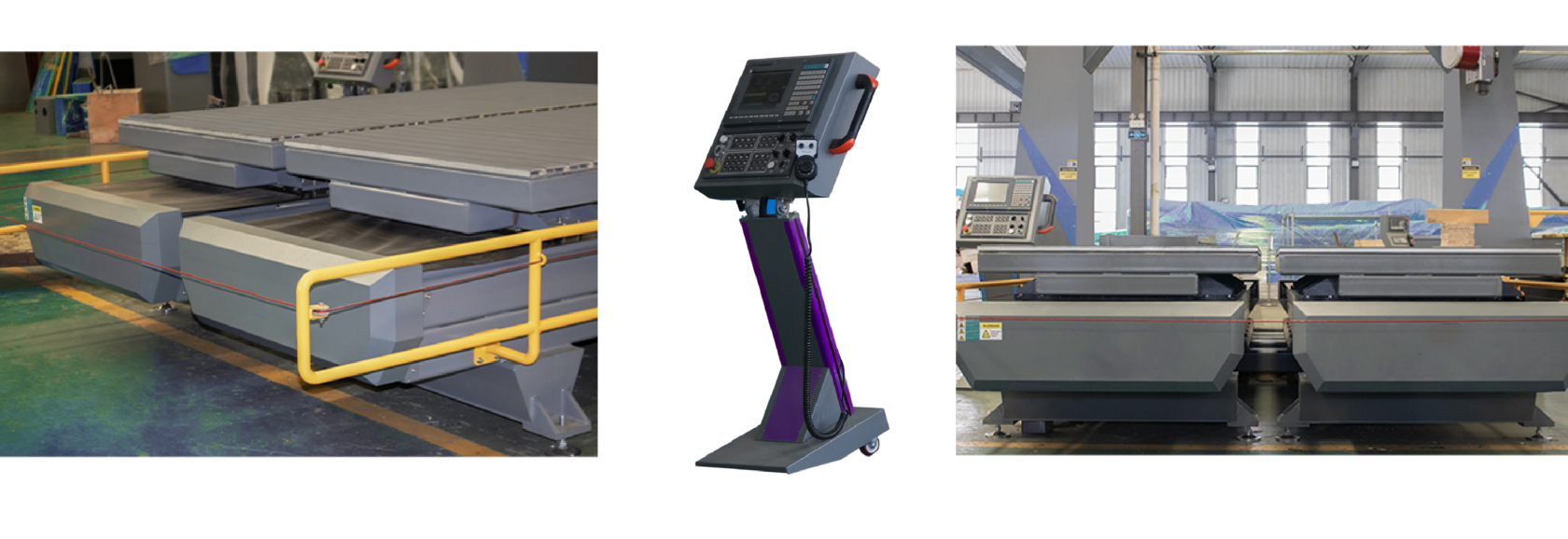

- Tables: 2 × T‑slot (cast iron or optional aviation aluminum with vacuum)
- Tool Changer: 8‑position ISO30; Ø 82 mm (loaded), Ø 165 mm (empty); max length 280 mm; max weight 12 lbs (5.4 kg)/tool
- Max Rapid Rate: 90 m/min; Working Speed: 70 m/min
- Positioning Accuracy: ± 0.02 mm/2000 mm
- Lubrication System: Automatic, one‑touch maintenance
- Safety: Active protection system
- Options: Hydraulic lifter, belt conveyor, tool setting gauge
- Power Supply: AC 380 V/50 (60) Hz/3 phase
- Warranty: 1–3 years (depending on configuration)
