BACCI DUPLEX Automatic CNC Band Saw
BACCI-DUPLEX
Detailed Description
Bacci DUPLEX is a high-precision vertical CNC band saw designed for straight and shaped cutting of wood. With the capability to install two plywood or Bakelite templates, the machine ensures accurate cutting of asymmetrical profiles on both inner and outer contours. The system of automatic motorized carriages with independent control and pneumatic clamps provides reliable fixation of workpieces and high cutting accuracy. The rotating blade with an angle of ±45° allows for complex contour cuts with a minimum radius of up to 65 mm (depending on the blade used). This machine is ideal for furniture production, decorative elements, and other applications requiring high precision and cutting quality.
Bacci DUPLEX is a high-precision vertical CNC band saw designed for straight and shaped cutting of wood. With the capability to install two plywood or Bakelite templates, the machine ensures accurate cutting of asymmetrical profiles on both inner and outer contours. The system of automatic motorized carriages with independent control and pneumatic clamps provides reliable fixation of workpieces and high cutting accuracy. The rotating blade with an angle of ±45° allows for complex contour cuts with a minimum radius of up to 65 mm (depending on the blade used). This machine is ideal for furniture production, decorative elements, and other applications requiring high precision and cutting quality.
Brand: BACCI
Machine type: Band Saw
Technical Specifications
- Machinable section: 1,300–2,000 × 1,000 × 150 mm
- Blade rotation angle: ±45°
- Minimum cutting radius: 65 mm (depending on the blade used)
- Blade size: 5,450 × 13/16 mm
- Main motor power: 7.5 Hp

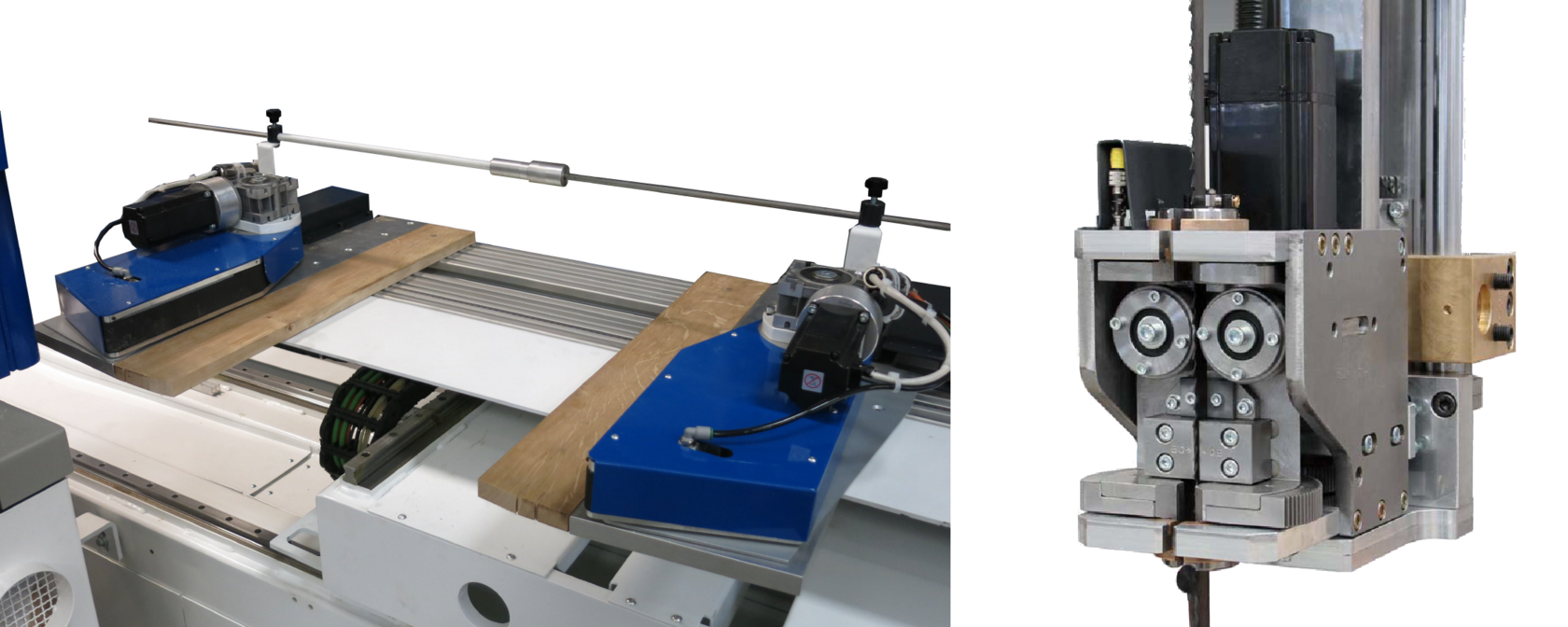

- Clamping system: automatic motorized carriages with pneumatic clamps

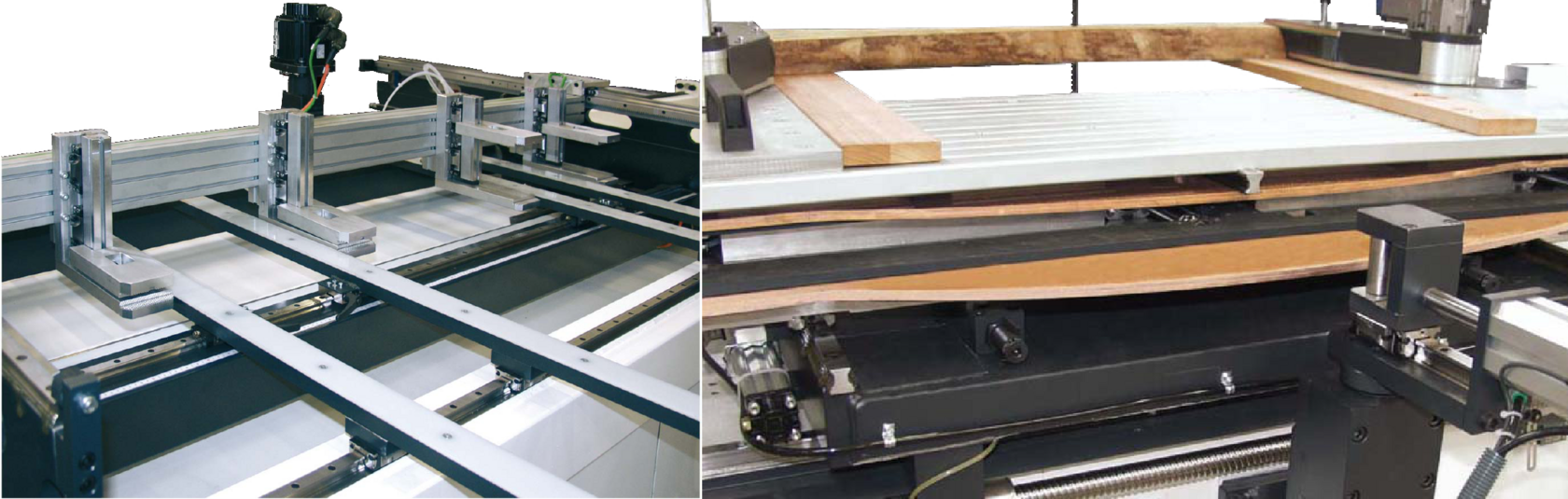

- Additional options: working table with two pneumatic clamps, movable along X and Y axes
