NAGIN BCF506 7‑Function Edge Banding Machine
NAGIN-BCF506
Detailed Description
NAGIN Manual Edge Banding Machine — the ultimate edge-sealing solution for furniture, cabinet, and interior panel production. Engineered with an advanced under-type plastic-box structure and uniform rubber-shaft glue application, it integrates six operations in one compact unit: gluing, end trimming, rough trimming, fine trimming, scraping, and buffing. A DELTA touch screen and PLC ensure intuitive control, while premium components (HAOLI conveyor motor, CC trimming motor, WANXIN VFD, AIRTAC valves, CSK rolling guide, GEASUN cylinders) deliver rock-solid reliability.
NAGIN Manual Edge Banding Machine — the ultimate edge-sealing solution for furniture, cabinet, and interior panel production. Engineered with an advanced under-type plastic-box structure and uniform rubber-shaft glue application, it integrates six operations in one compact unit: gluing, end trimming, rough trimming, fine trimming, scraping, and buffing. A DELTA touch screen and PLC ensure intuitive control, while premium components (HAOLI conveyor motor, CC trimming motor, WANXIN VFD, AIRTAC valves, CSK rolling guide, GEASUN cylinders) deliver rock-solid reliability.
Brand: NAGIN
Control system: DELTA
Machine type: Edge Banding Machine
Technical Specifications

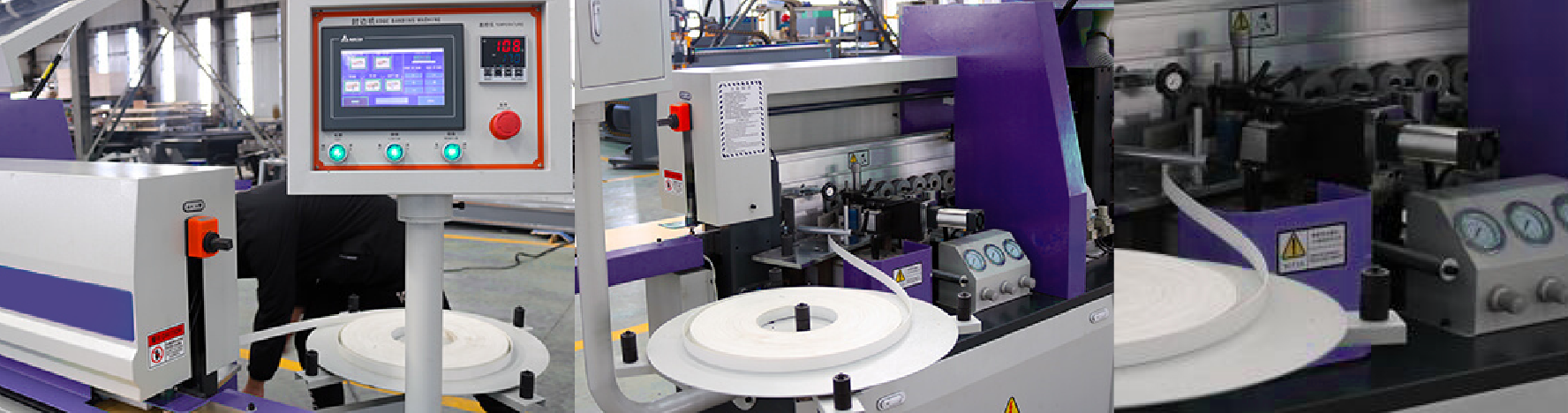

- Controls & Electronics: DELTA touch screen; DELTA PLC; CHINT electrical parts
- Drives & Pneumatics: HAOLI conveyor motor; CC trimming motor; WANXIN VFD; AIRTAC solenoid valves; CSK rolling guide; GEASUN cylinder
- Panel Capacity: length ≥ 80 mm; thickness 8 – 60 mm; edgeband thickness 0.4 – 3 mm
- Performance: feeding speed up to 12 m/min; pneumatic pressure ≥ 0.6 MPa
- Power Supply: 380 V/220 V, 50/60 Hz; total power 9.4 kW
- Dimensions & Weight: 4500 × 1000 × 1600 mm; 1650 kg
- Band Reel: supports up to 20 kg; band thickness 0.4 – 3 mm

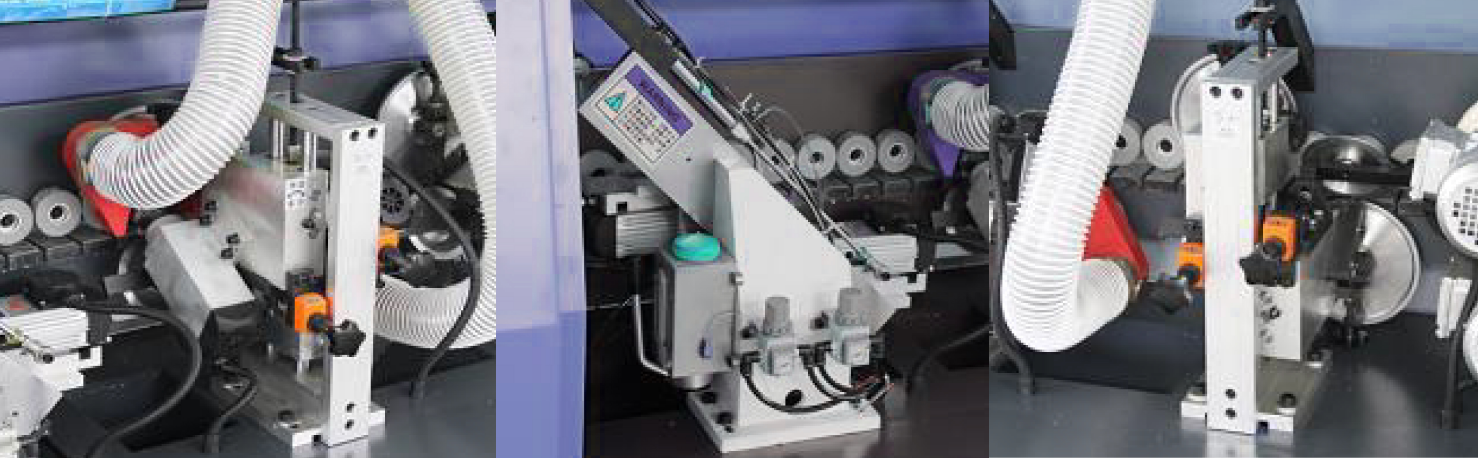

- Operations:
- Gluing: even adhesive coating for superior bond strength
- End Trimming: high-frequency motor on linear rails for flawless cuts
- Rough Trimming: automatic profiling to remove excess edgeband
- Fine Trimming: finishing cut for a pristine edge
- Scraping: removes cut marks for an ultra-smooth panel
- Buffing: cotton wheel for final polish sheen
