NAGIN 1325C 4‑Axis CNC Machine with Automatic Tool Changer
NAGIN-1325C-4AX
Detailed Description
NAGIN 4AXIS SERIES is a state‑of‑the‑art family of 4‑axis machining centers featuring an Automatic Tool Changer (ATC) engineered for peak performance and precision. The additional A‑axis rotates the spindle up to ±180° for multi‑side machining in one setup, eliminating re-fixturing and accelerating complex workflows. A rigid gantry frame and ISO30 9 kW spindle deliver stable high-speed cutting, while the integrated auto‑lubrication system and one‑touch maintenance reduce downtime and operational costs. Perfect for furniture components, musical instruments, decorative carvings, prototypes, and diverse applications in wood, composites, plastics, and aluminum .
NAGIN 4AXIS SERIES is a state‑of‑the‑art family of 4‑axis machining centers featuring an Automatic Tool Changer (ATC) engineered for peak performance and precision. The additional A‑axis rotates the spindle up to ±180° for multi‑side machining in one setup, eliminating re-fixturing and accelerating complex workflows. A rigid gantry frame and ISO30 9 kW spindle deliver stable high-speed cutting, while the integrated auto‑lubrication system and one‑touch maintenance reduce downtime and operational costs. Perfect for furniture components, musical instruments, decorative carvings, prototypes, and diverse applications in wood, composites, plastics, and aluminum .
Brand: NAGIN
Control system: Syntec
Machine type: 4-axis CNC мachine
Key Benefits

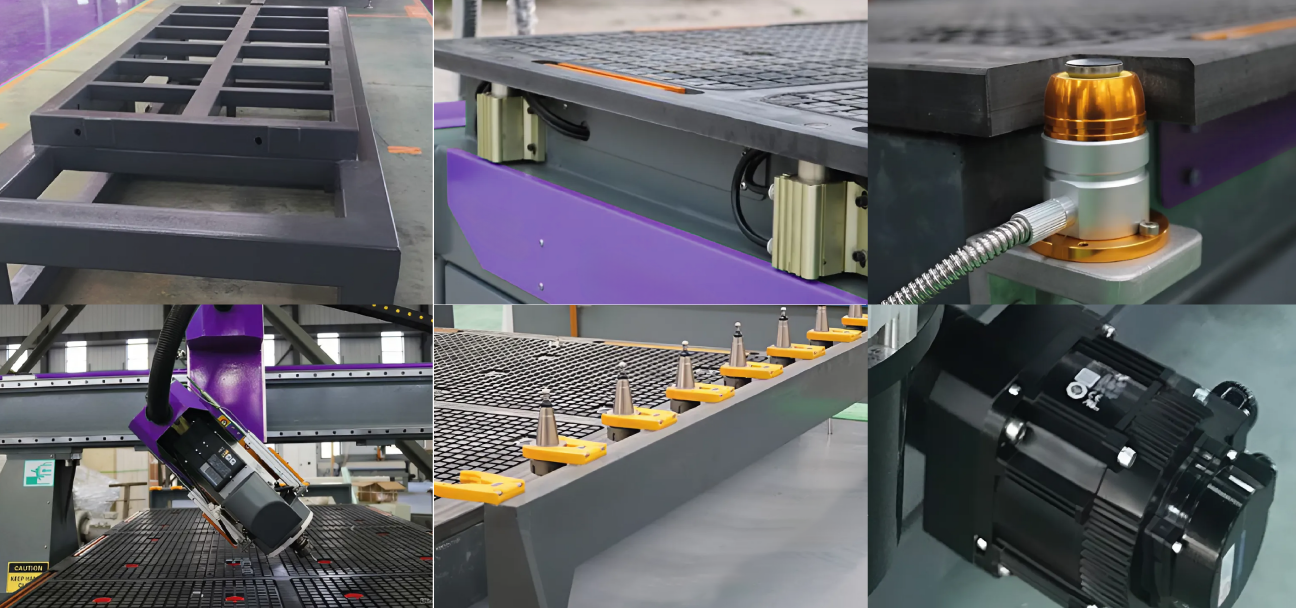

- Four‑sided machining in one setup with A‑axis rotation ±180°
- 10‑position automatic tool changer (optionally 12) for seamless tool swaps

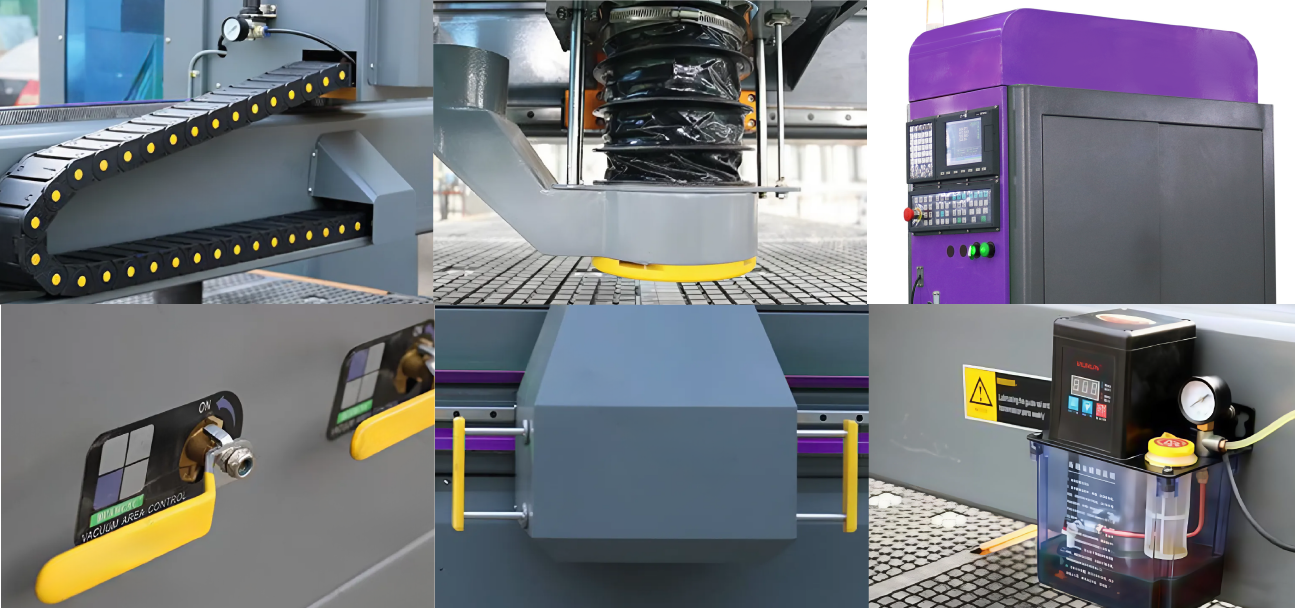

- Built‑in auto‑lubrication and one‑touch maintenance
- HQD 9 kW ISO30 air‑cooled spindle for precise high‑speed cutting
- Versatile machining of wood, composites, plastics, acrylics, aluminum and more
Technical Specifications
- Working Area (X × Y × Z):
- 1300 × 2500 × 200 mm
- 1500 × 3000 × 200 mm
- 2000 × 3000 × 200 mm
- 2000 × 4000 × 200 mm
- 2000 × 6000 × 200 mm
- Optional Z‑axis extensions: 400 / 600 / 800 / 1000 mm
- Spindle: 9 kW HQD (ISO30), air cooling, 10‑position ATC (12‑pos. optional)
- Feed Rates: X/Y – 3150 ipm (~80 m/min), Z – 735 ipm (~18.7 m/min); Max. Rapid – 90 m/min; Working – 60 m/min
- Positioning Accuracy: 0.01 mm/2000 mm
- Control System: Taiwan Syntec 6MB (RTCP, online/Wi-Fi capable)
- Drive Motors: Yaskawa servo 1300 W with brakes
- Rails & Transmission: X/Y – rack & pinion; Z – Taiwan TBI ball screw; Hiwin HG Series 25 mm linear rails
- Table: Vacuum + T‑slot
- Power Supply: AC 380 V, 3‑phase, 50/60 Hz
- Inverter: Delta VFD‑B 11 kW with brake
- Safety: active protection system, external E‑stop, CE compliant
- Warranty: 3 years
- Operating Environment: 0 … 45 °C; 5 … 75 % RH
