BACCI ARTIST.L LPM 5‑Axis CNC Machine
BACCI-ARTIST-L-LPM
Detailed Description
BACCI ARTIST.L LPM is the flagship of the ARTIST series in its LARGE configuration, engineered for the most demanding panel and solid-wood machining tasks. Its 1250 × 2400 mm high-density bakelite table with built-in vacuum and M8 fixture holes @ 50 mm securely holds parts of any shape. The compact yet powerful T1M head delivers rapid, precise cutting, while the 8-position HSK 63 F tool magazine lets you swap cutters seamlessly under full spindle power. A welded monoblock frame ensures absolute rigidity in both roughing and finishing, and advanced servo drives with sub-±0.01 mm repeatability guarantee flawless results.
BACCI ARTIST.L LPM is the flagship of the ARTIST series in its LARGE configuration, engineered for the most demanding panel and solid-wood machining tasks. Its 1250 × 2400 mm high-density bakelite table with built-in vacuum and M8 fixture holes @ 50 mm securely holds parts of any shape. The compact yet powerful T1M head delivers rapid, precise cutting, while the 8-position HSK 63 F tool magazine lets you swap cutters seamlessly under full spindle power. A welded monoblock frame ensures absolute rigidity in both roughing and finishing, and advanced servo drives with sub-±0.01 mm repeatability guarantee flawless results.
Brand: BACCI
Control system: Osai
Machine type: 5-axis CNC мachine
Technical Specifications
- Interpolated axes: 5
- Working envelope (X × Y × Z): 2600 × 3000 × 830 mm
- A-Axis: unlimited rotation
- C-Axis: ±200° (400° total)

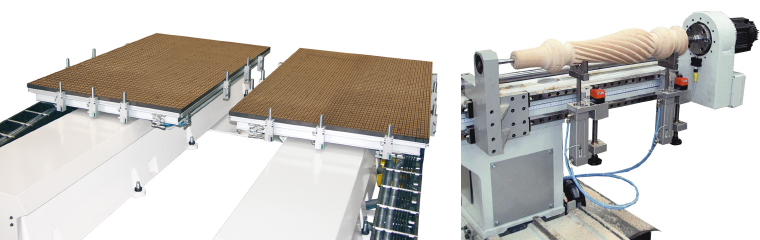

- Table: 1250 × 2400 mm Rexilon (bakelite) with vacuum and M8 fixture holes @ 50 mm

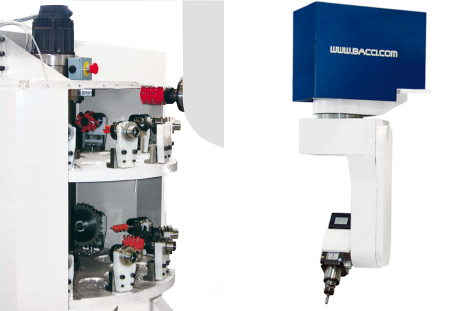

- Head: T1M electric spindle in rigid fork
- Tool magazine: 8 positions, HSK 63 F
- Positioning accuracy: ±0.01 mm
- Max feed rates: 25 m/min
- Servo drives: Yaskawa or Siemens (configurable)
- Control system: CE-certified CNC with RTCP, G-code support
- Power supply: AC 380 V, 3-phase, 50/60 Hz
- Machine weight: approx. 6 500 kg
