BACCI MASTER.RAIL 6‑Axis CNC Machine
BACCI-MASTER-RAIL
Detailed Description
Unlock New Production Horizons with the Bacci MASTER RAIL 6-Axis CNC Gantry Milling Center!
Engineered for maximum structural rigidity and equipped with a powerful 7.5 kW spindle (24,000 RPM), the MASTER RAIL delivers exceptional cut quality and outstanding precision when machining complex 3D shapes.
Two vacuum tables with pneumatic clamps and a 16-position tool magazine reduce setup time and boost production efficiency.
The intuitive OSAI + Pitagora control system ensures easy programming, while travel ranges up to 4,900×2,600×1,130 mm make it perfect for large-scale projects.
Achieve maximum performance with minimal costs — contact us to configure your ideal setup and get fast delivery!
Unlock New Production Horizons with the Bacci MASTER RAIL 6-Axis CNC Gantry Milling Center!
Engineered for maximum structural rigidity and equipped with a powerful 7.5 kW spindle (24,000 RPM), the MASTER RAIL delivers exceptional cut quality and outstanding precision when machining complex 3D shapes.
Two vacuum tables with pneumatic clamps and a 16-position tool magazine reduce setup time and boost production efficiency.
The intuitive OSAI + Pitagora control system ensures easy programming, while travel ranges up to 4,900×2,600×1,130 mm make it perfect for large-scale projects.
Achieve maximum performance with minimal costs — contact us to configure your ideal setup and get fast delivery!
Brand: BACCI
Control system: Osai
Machine type: 6-axis CNC мachine
Technical Specifications
- Number of controlled axes: 6
- X‑axis travel (longitudinal): 4 900 mm or more
- Y‑axis travel (transversal): 2 200 / 2 600 mm or more
- Z‑axis travel (vertical): 750 / 950 / 1 130 mm or more

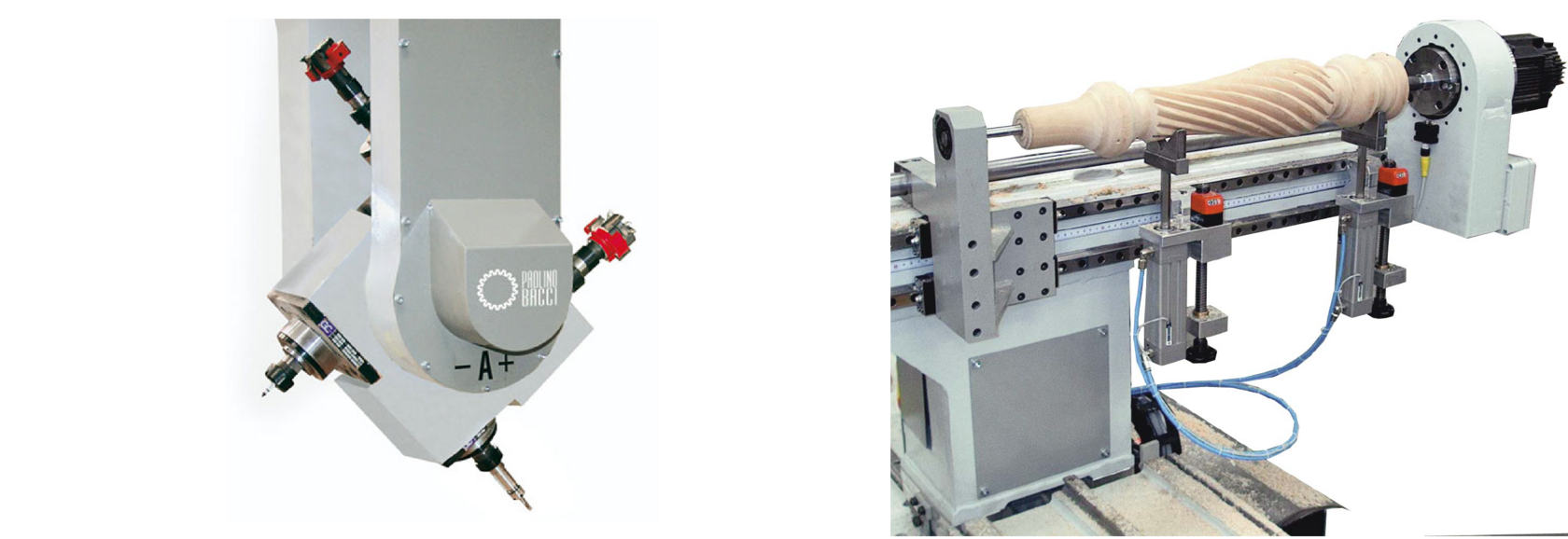

- B‑axis: unlimited rotation
- C‑axis: 400° or more

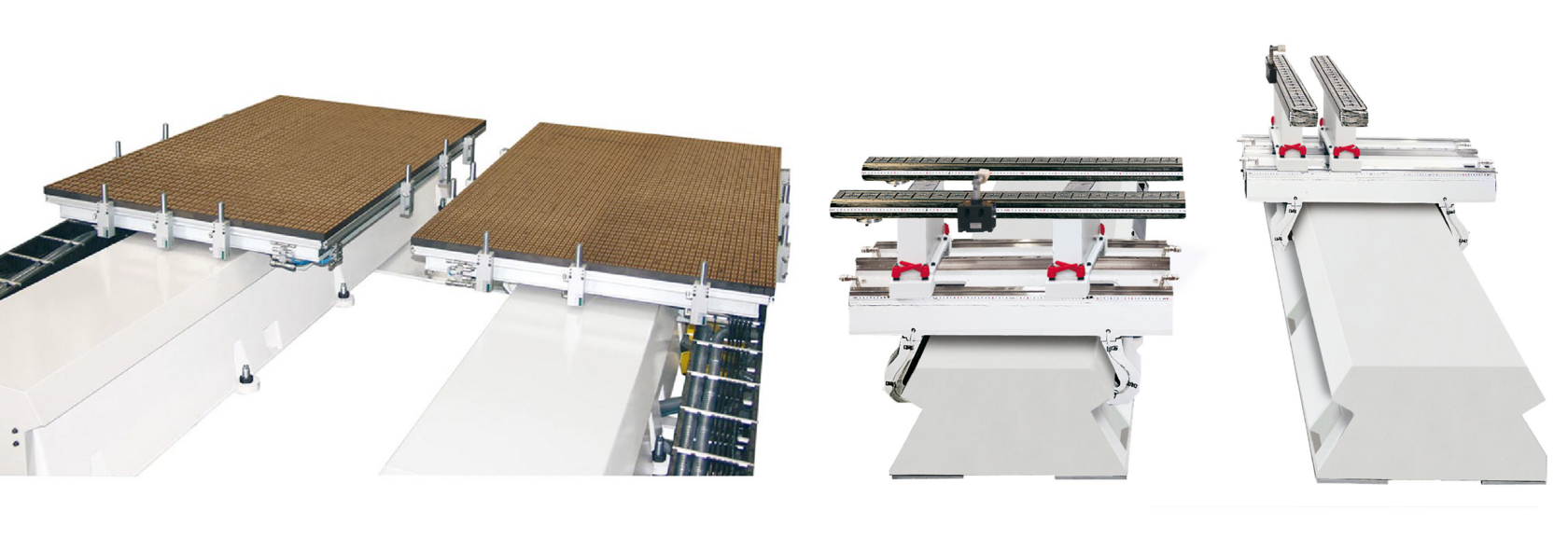

- Rail table (RAIL table) with solid‑aluminium TGV guides (up to 2 m) featuring:
- Push‑button rail setup (manual/automatic)

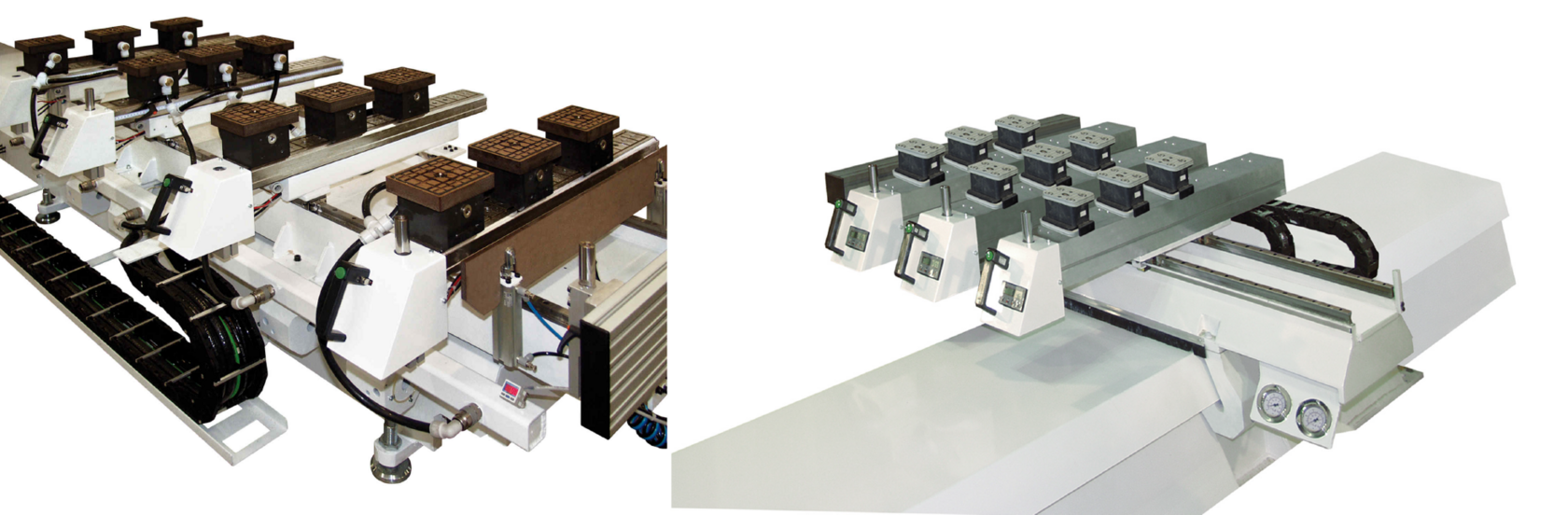

- Vacuum cups
- Side and top pneumatic clamps
- Lift‑up supports for easy loading/unloading
- Retractable and side reference fences
- Chip collector with belt conveyor
