BACCI ARTIST.TGV 6‑Axis CNC Machine
BACCI-ARTIST-TGV
Detailed Description
BACCI ARTIST.TGV is an ultra-flexible 6-axis CNC machining center featuring two independent TGV tables (BACCI patent) and a T2+2 operative head. Suited for any operation—furniture components, chairs, sports equipment, musical instruments, plastics, and composites—it delivers peak productivity without compromising precision through variable-geometry tables, rapid load/unload cycles, and dual-spindle capability
BACCI ARTIST.TGV is an ultra-flexible 6-axis CNC machining center featuring two independent TGV tables (BACCI patent) and a T2+2 operative head. Suited for any operation—furniture components, chairs, sports equipment, musical instruments, plastics, and composites—it delivers peak productivity without compromising precision through variable-geometry tables, rapid load/unload cycles, and dual-spindle capability
Brand: BACCI
Control system: Osai
Machine type: 6-axis CNC мachine
Technical Specifications
- Number of controlled axes: 6
- Travel (X / Y / Z): 2600 mm / 2200 mm / 830 mm
- A-Axis: unlimited rotation
- C-Axis: 400°

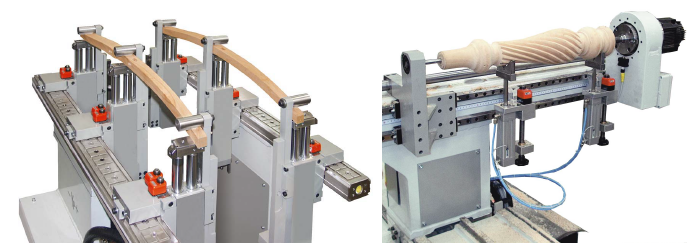

- Working Tables:
- Two variable-geometry TGV tables (steel rails, vacuum suction, M8 fixture holes at 50 mm centers)
- Dovetail guides for pneumatic clamps, stops, and suction cups
- Free-Jig Device: adjustable clamps for curved parts without complex jigs
- NC Lathe (optional): integrated turning module for 5-axis milling/turning; standard length 1100 / 1300 mm, max Ø 200 mm

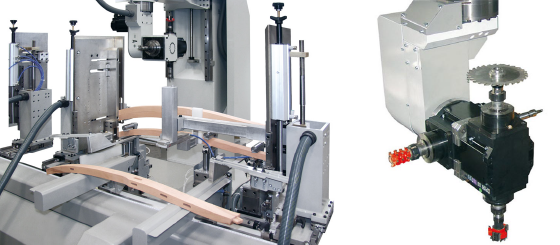

- Operative Head: T2+2 (two double-exit ER32 spindles in cross position, reverse rotation on opposite exits)
- Automatic Loader/Unloader: hopper-feeder with 3.5 s cycle, 1200 mm unload height, max section 100 × 60 mm (on request)
