NAGIN 1325D 3-Axis CNC Machine with Automatic Tool Changer
NAGIN 1325D 3AX
Detailed Description
NAGIN D Series is a disc-type 4-axis CNC router with an Automatic Tool Change (Disc ATC) system, engineered for high-volume production of furniture, doors, countertops, speaker enclosures, and more. Its servo-driven tool carousel with 8/10/12/16 slots (optional) delivers lightning-fast, precise tool swaps. A 12 mm heavy-duty frame and active safety features ensure long-term reliability and operator protection. The NAGIN D Series turns complex multi-tool workflows into a seamless automated process with minimal setup time.
NAGIN D Series is a disc-type 4-axis CNC router with an Automatic Tool Change (Disc ATC) system, engineered for high-volume production of furniture, doors, countertops, speaker enclosures, and more. Its servo-driven tool carousel with 8/10/12/16 slots (optional) delivers lightning-fast, precise tool swaps. A 12 mm heavy-duty frame and active safety features ensure long-term reliability and operator protection. The NAGIN D Series turns complex multi-tool workflows into a seamless automated process with minimal setup time.
Brand: NAGIN
Control system: Syntec
Machine type: 3-axis CNC мachine
Technical Specifications
- Working Area (X × Y × Z): 1300 × 2500 × 200 mm (4 × 8 ft)
- Optional Working Areas:
- 1300 × 1300 × 200 mm (4 × 4 ft)
- 1500 × 3000 × 200 mm (5 × 10 ft)
- 2000 × 3000 × 200 mm (6 × 10 ft)
- 2000 × 4000 × 200 mm (6 × 13 ft)
- 2000 × 6000 × 200 mm (6 × 20 ft)

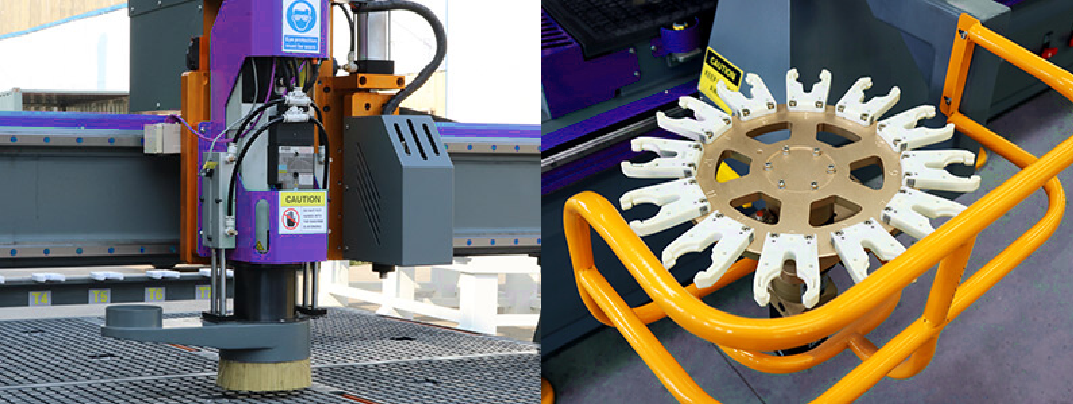

- Spindle: Italian HSD 9.5 kW (12 HP), air-cooled, ISO30
- Disc ATC Tool Changer: 10 positions (options: 12/16)
- Positioning Accuracy: ±0.02 mm/2000 mm
- Max. Rapid Traverse: 90 m/min
- Max. Working Feed: 70 m/min
- Drive Transmission: X/Y – rack & pinion; Z – Taiwan TBI ball screw
- Linear Guides: 25 mm Hiwin HG Series
- Table Surface: vacuum table + T-slots
- Control System: Taiwan Syntec 6MB (4-axis), G-code, USB, network

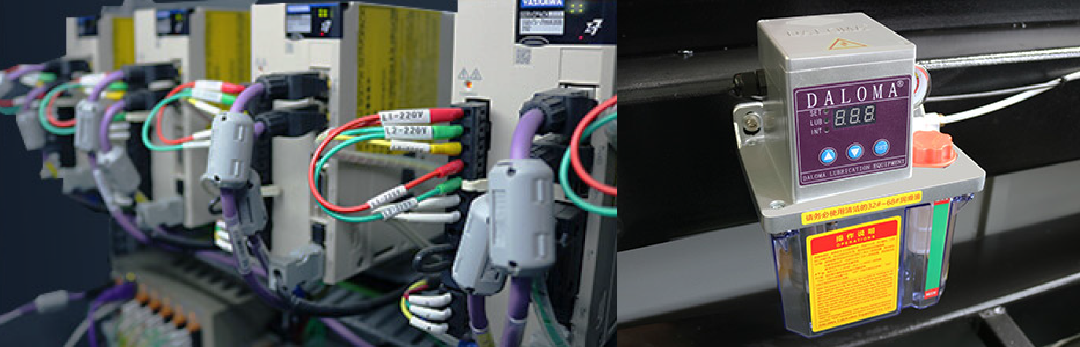

- Servo Motors: Yaskawa (Japan)
- VFD Drive: Delta VFD-B
- Power Supply: AC 380 V, 3-phase, 50/60 Hz
- Auto-Lubrication: one-touch periodic maintenance
- Pneumatic & Vacuum Options: vacuum pump, oil-free pump 5.5 kW, air compressor 5.5 kW (optional)
- Safety Features: active protection, E-stop, CE-compliant
- Operating Environment: −20 °C … +45 °C; 5 % … 75 % RH
- Delivery Time: 7–9 working days after payment
