NAGIN 1325CD 5-Axis CNC Machine with Automatic Tool Changer
NAGIN-1325CD-5AX
Detailed Description:
NAGIN 1325CE 5AXIS is a versatile 5‑axis machining center engineered for precision work on the hardest and most delicate materials. Features such as Constant Tip Speed Machining, Volumetric 3D Laser Compensation, and Automatic Fixture Alignment deliver flawless surfaces without rework. Linear and positional compensation systems ensure top accuracy anywhere in the working envelope, while automated tool changing and lubrication minimize downtime and operator intervention.
NAGIN 1325CE 5AXIS is a versatile 5‑axis machining center engineered for precision work on the hardest and most delicate materials. Features such as Constant Tip Speed Machining, Volumetric 3D Laser Compensation, and Automatic Fixture Alignment deliver flawless surfaces without rework. Linear and positional compensation systems ensure top accuracy anywhere in the working envelope, while automated tool changing and lubrication minimize downtime and operator intervention.
Brand: NAGIN
Control system: Syntec
Machine type: 5-axis CNC мachine
Technical Specifications
- Working Area (X × Y × Z): 1300 × 2500 × 600 mm | 4 × 8 ft

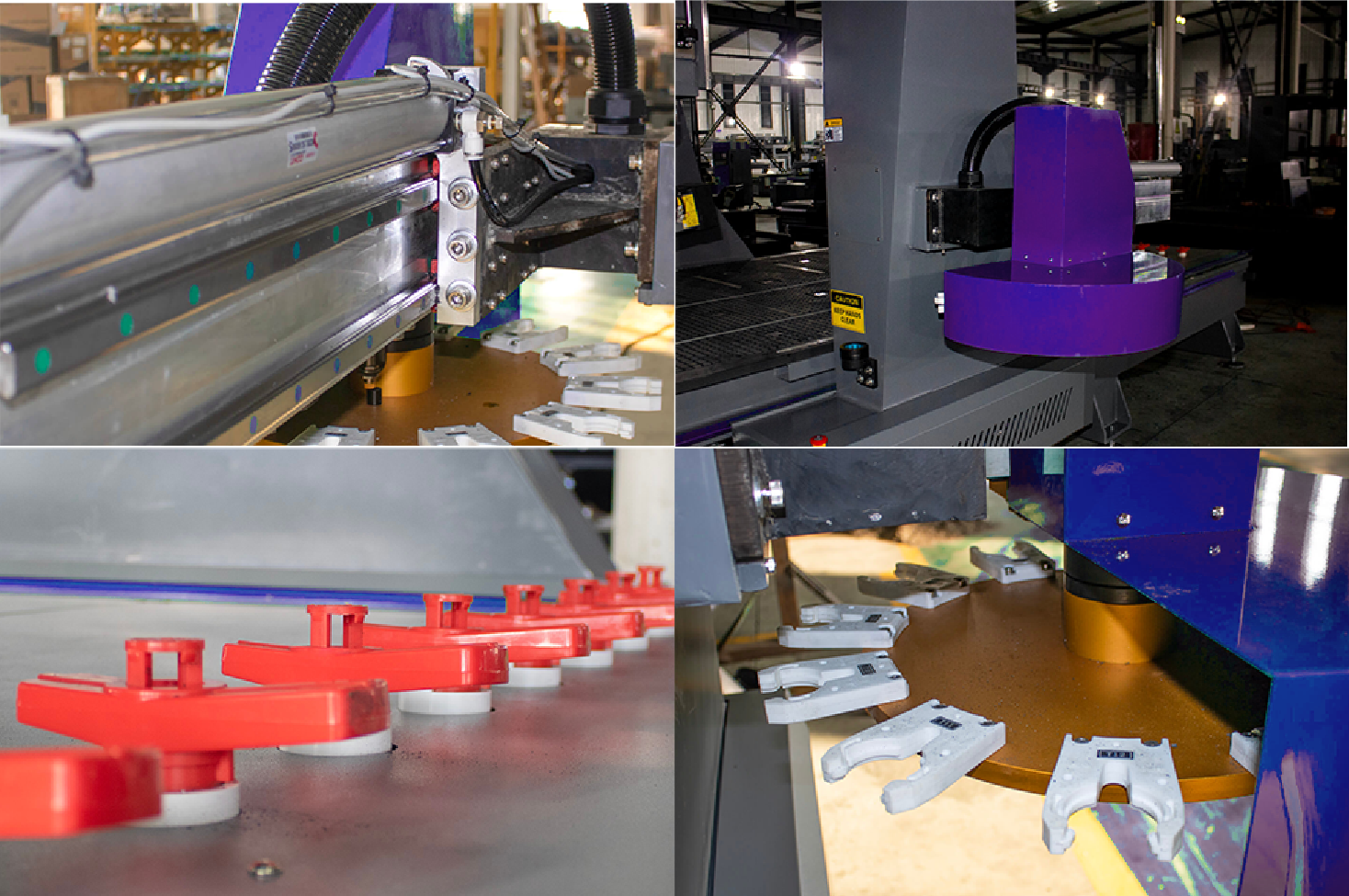

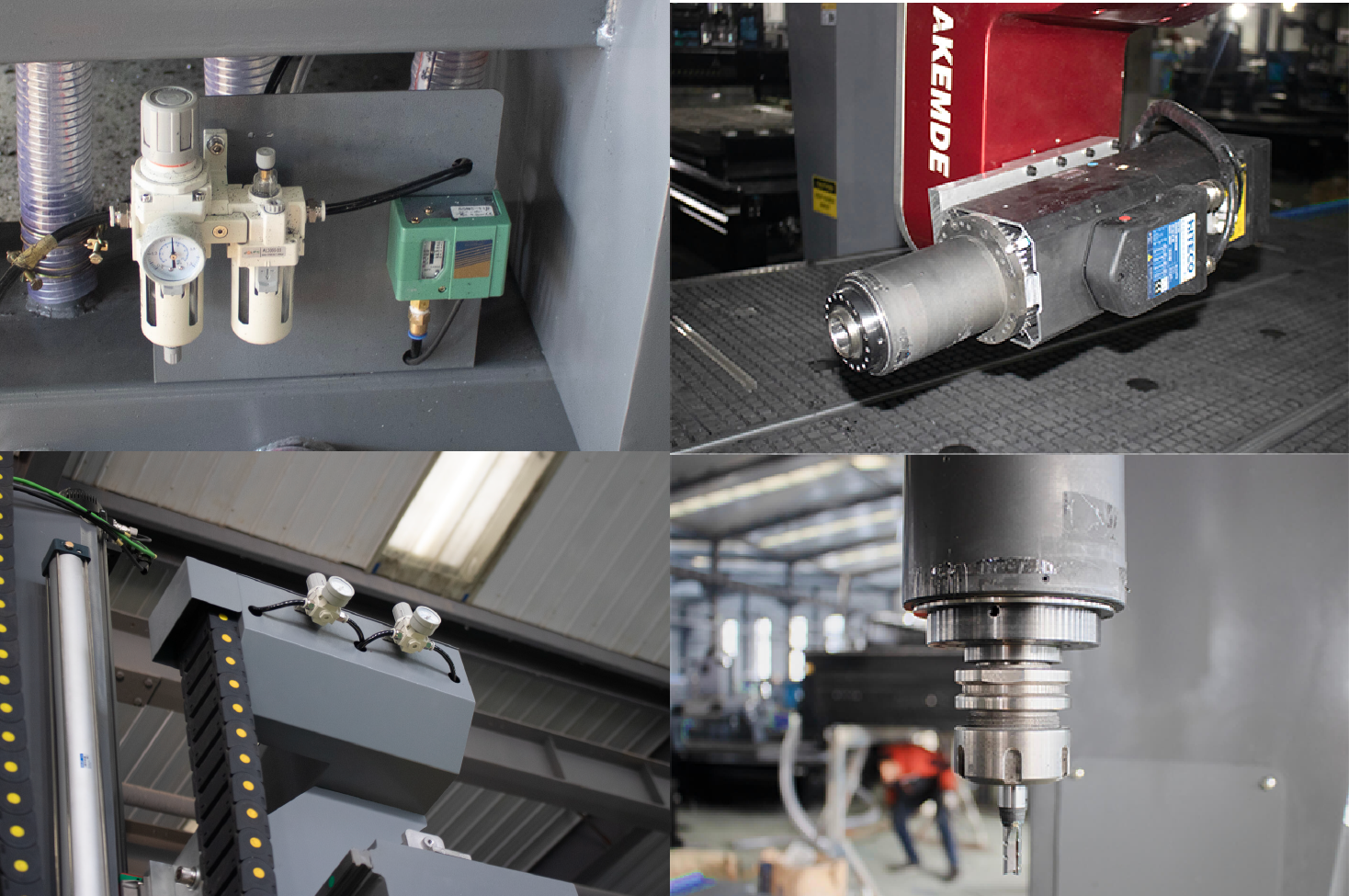

- Spindle Power: 9.0 kW HQD air‑cooled, ISO30, 8‑position Automatic Tool Changer
- A‑Axis Rotation: ±120°
- C‑Axis Rotation: ±213°
- Feed Rates: X/Y – 3150 ipm (≈80 m/min), Z – 735 ipm (≈18.7 m/min), A/C – 82.5 °/sec
- Max. Rapid Travel: 90 m/min
- Max. Working Speed: 70 m/min
- Positioning Accuracy: ±0.02 mm/2000 mm
- Power Supply: AC 380 V, 3‑phase, 50/60 Hz
- Inverter: Delta MS 11 kW with brake function
- Control System: Taiwan Syntec 610MA with RTCP and network capability
- Drive Motors: Yaskawa servo, 1300 W with brake
- Rails & Transmission: X/Y – gear drive; Z – Taiwan TBI ball screw; Taiwan TBI Square 30 rails
- Table: vacuum table + T‑slot table (optional)
- Auto‑lubrication & tool sensor
- Omron limit switches (Japan)
- Operating Environment: temperature – −20 °C to +45 °C; humidity – 5 % to 75 %
