Toroidal helical router bits Z=2, 6 mm shank, 25° helix
A2008
Detailed Description
Tungsten carbide (HW) toroidal helical bits featuring a 25° positive helix and two cutting edges. Designed for precision finishing of semi-circular and complex contours in hardwood, softwood, and MDF on CNC routers. Recommended feed rate: 2–10 m/min at 18 000–24 000 RPM.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Tungsten carbide (HW) toroidal helical bits featuring a 25° positive helix and two cutting edges. Designed for precision finishing of semi-circular and complex contours in hardwood, softwood, and MDF on CNC routers. Recommended feed rate: 2–10 m/min at 18 000–24 000 RPM.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Carbide tools
Maximum speed: up to 24 000 RPM
Description

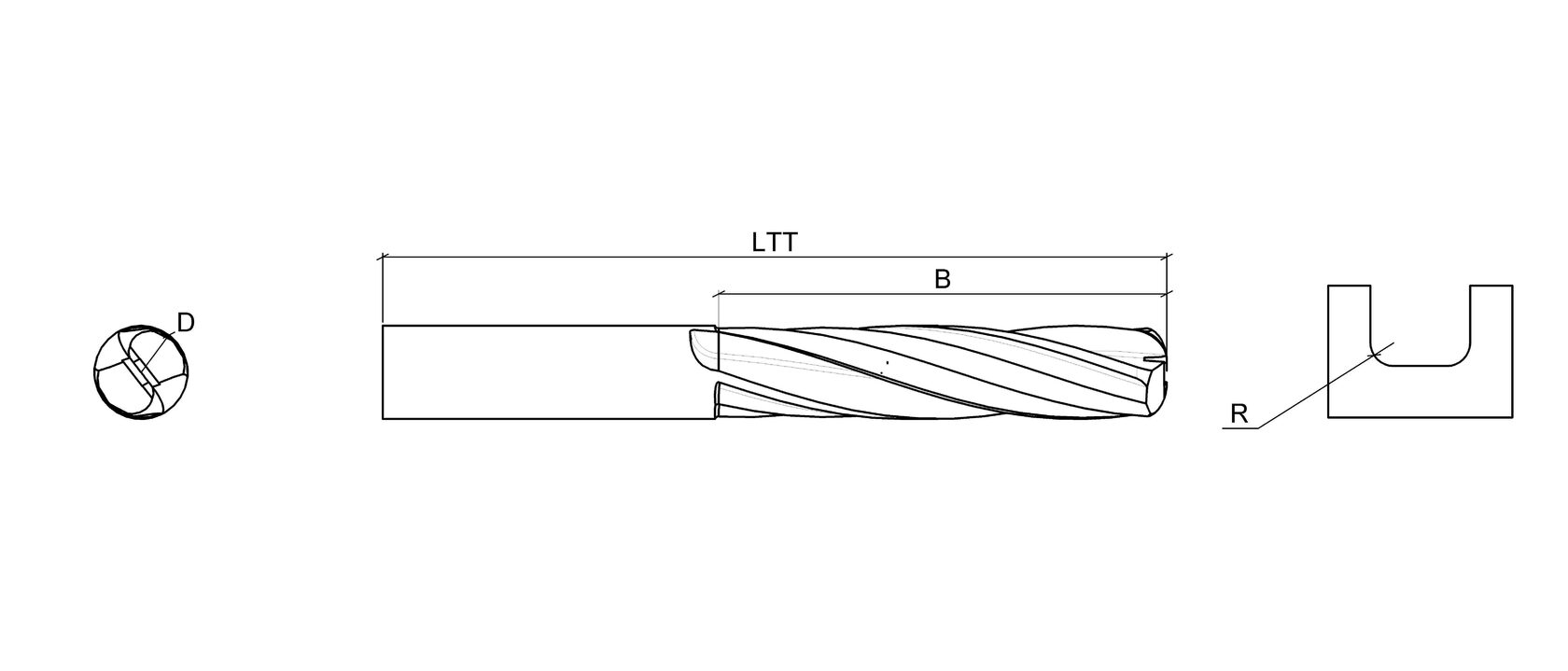

BTC The A2008 bits feature a toroidal cutting head (profile radius R from 3 to 20 mm) and a dual-edge helical geometry for flawless finishing of semi-circular and intricate contours. Customizable radii and diameters adapt to any project.Specifications
- Cutting diameter (D): 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 mm
- Cutter width (B): 12–75 mm (various sizes)
- Cutting length (ltt): 40–120 mm
- Number of edges (Z): 2
- Rotation: DX/RH or SX/LH
- Shank diameter (S): 6 mm
- Profile radius (R): 3–20 mm
- Helix angle (α): 25° positive helix
- Applications: hardwood, softwood, MDF
