Multicut spiral router bits for drill & edge
A0410
Detailed Description
Spiral router bits featuring a central drill tip and 3 or 6 fractioned cutting edges in brazed tungsten carbide (HW). The spiral layout reduces noise and energy consumption, allowing higher feed rates. Ideal for ramp entry operations in hardwood, softwood, plywood, and composites.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Spiral router bits featuring a central drill tip and 3 or 6 fractioned cutting edges in brazed tungsten carbide (HW). The spiral layout reduces noise and energy consumption, allowing higher feed rates. Ideal for ramp entry operations in hardwood, softwood, plywood, and composites.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: CNC Router Tools
Maximum speed: up to 18,000 RPM
Arbor: ISO-30 arbor
Description

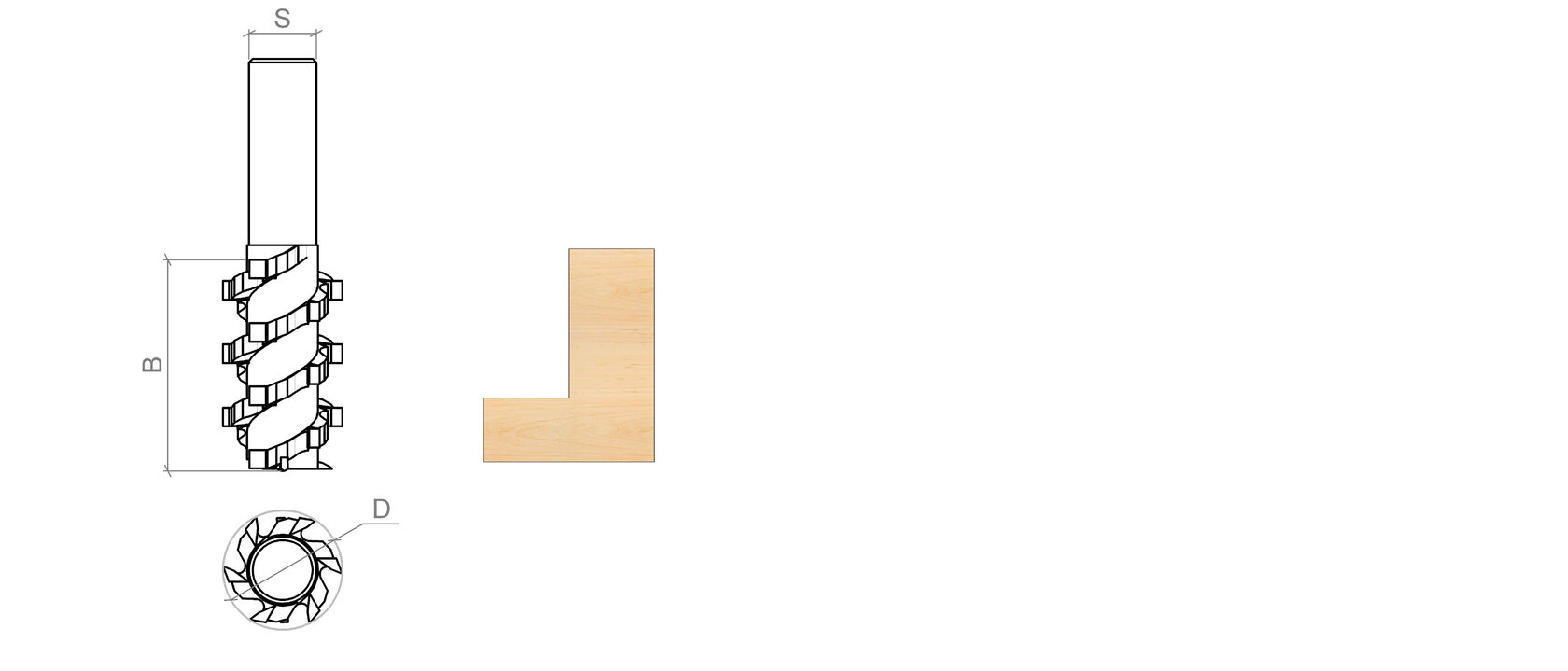

The central drill tip creates a pilot hole, then fractioned spiral edges machine a clean, chamfer-free edge.• Drill & edge profiling in one tool
• Noise and energy reduction thanks to spiral edge arrangement
• Suitable for CNC routers and handheld routers
• Available with Z=3 or Z=6
Specifications
- Cutting diameter: 20 or 30 mm
- Shank diameter: 45, 60, 80, 100 or 120 mm
- Cutting length (ltt): 98–195 mm
- Number of cutting edges (Z): 3 or 6
- Rotation direction: DX/RH (clockwise)
- Cutting edge material: HW (tungsten carbide)
- Body material: steel
- Suitable materials: hardwood, softwood, plywood
- Operations: ramp entry and edge profiling
