Insert profiled cutters
A0300
Detailed Description

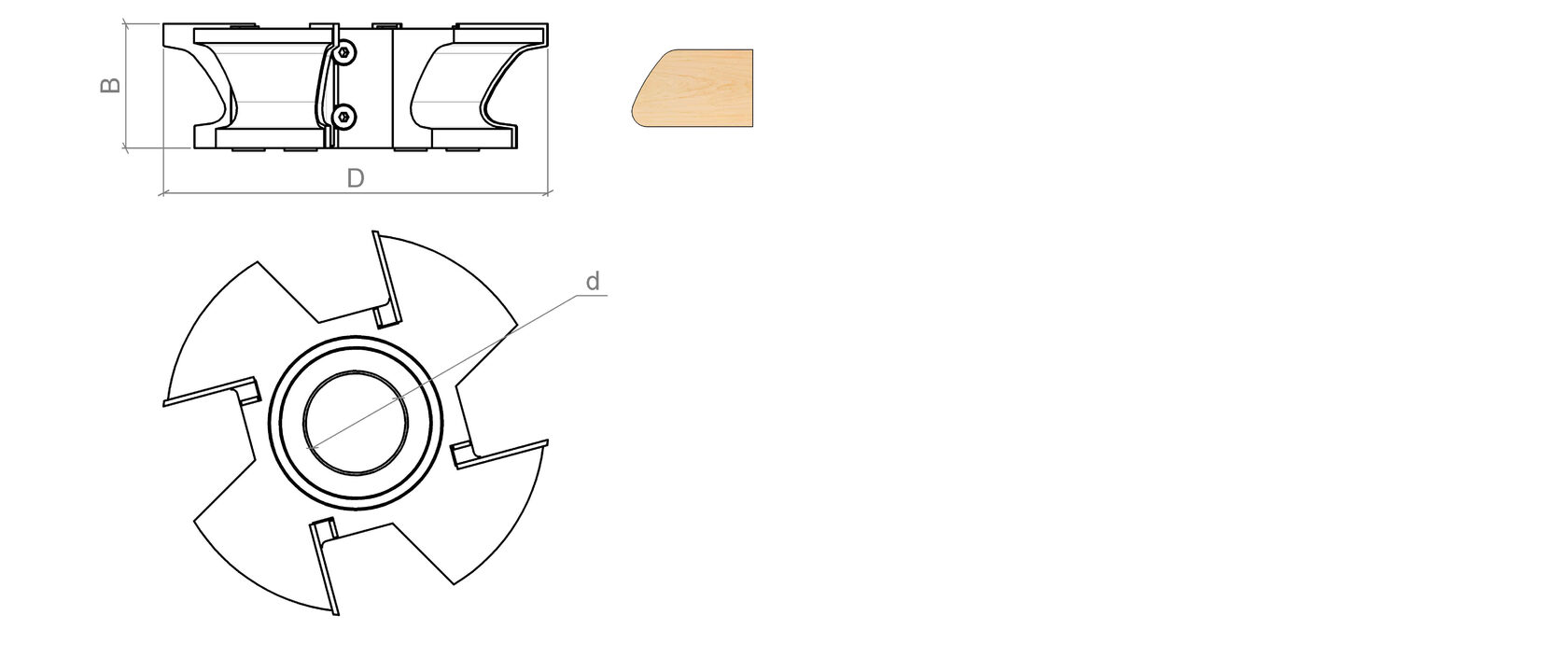

Assembly cutter with integral HW (tungsten carbide) profiled inserts for precision contour reproduction. Z=2, 3 or 6 variants optimize feed rates and finish; replaceable inserts ease maintenance.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Assembly cutter with integral HW (tungsten carbide) profiled inserts for precision contour reproduction. Z=2, 3 or 6 variants optimize feed rates and finish; replaceable inserts ease maintenance.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Insert Cutters
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Description
Four profiled HW inserts in a steel body deliver high wear resistance and accurate profile reproduction.• Z=2 (20% discount), Z=3 (10% discount), Z=6 (25% surcharge)
• Compatible with copy-shapers, moulders, and spindle moulders
• Specify rotation direction when ordering
Specifications
- Cutting diameter: 80–300 mm
- Shank diameter: 30–50 mm
- Number of edges: 4
- Helix angle: 12°–50°
- Body material: steel
- Insert options: Z=2 / Z=3 / Z=6
- Suitable materials: hardwoods and softwoods
- Tool life: up to 500 m² of profile
- Weight: 0.2–1 kg
