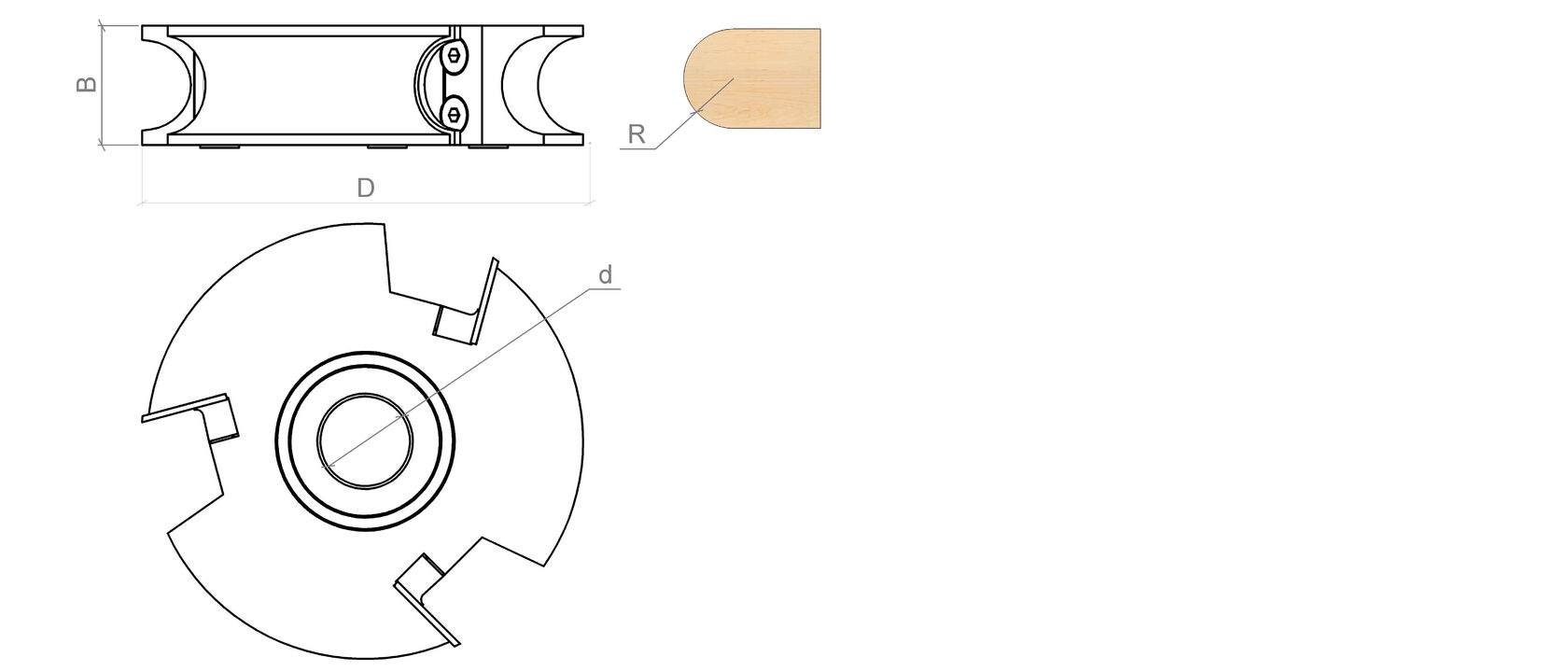

Profiled cutters for Half Circles
A0303
Detailed Description
Insert-type cutter with brazed tungsten carbide tips for precise half-circle profiling. Options Z=2 and Z=3 allow users to choose between fast processing or superior surface finish. Suitable for CNC and manual milling machines.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Insert-type cutter with brazed tungsten carbide tips for precise half-circle profiling. Options Z=2 and Z=3 allow users to choose between fast processing or superior surface finish. Suitable for CNC and manual milling machines.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Insert Cutters
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Description
Four replaceable carbide knives deliver flawless half-circle profiles without chipping.• Available in Z=2 (fast feed) or Z=3 (fine finish)
• Compatible with copying mills and wood CNC centers
• Please specify rotation direction when ordering
Specifications
- Cutting diameter: 50–300 mm
- Shank diameter: 20–50 mm
- Number of inserts (Z): 2 or 3
- Helix angle: 15°–30°
- Body material: steel
- Insert material: tungsten carbide
- Recommended materials: wood, MDF, composites
- RPM range: 8,000–16,000 RPM
- Feed rate: 1–4 m/min
- Weight: 0.2–1.5 kg
