Insert multicut router cutter with 14×14×2 mm knives
A0474
Detailed Description
The A0474 cutter is equipped with replaceable 14×14×2 mm tungsten carbide knives, designed for precise, chip-free edge profiling on hardwood, softwood, MDF, and chipboard. Its lightweight aluminum body on a steel arbor ensures durability and easy knife replacement.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
The A0474 cutter is equipped with replaceable 14×14×2 mm tungsten carbide knives, designed for precise, chip-free edge profiling on hardwood, softwood, MDF, and chipboard. Its lightweight aluminum body on a steel arbor ensures durability and easy knife replacement.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Type: CNC Router Tools
Description
Replaceable 14×14×2 mm carbide knives deliver flawlessly smooth edges.• Lightweight aluminum body with steel arbor
• Quick knife swaps via ISO-30 arbor
• Suitable for CNC routers and handheld routers

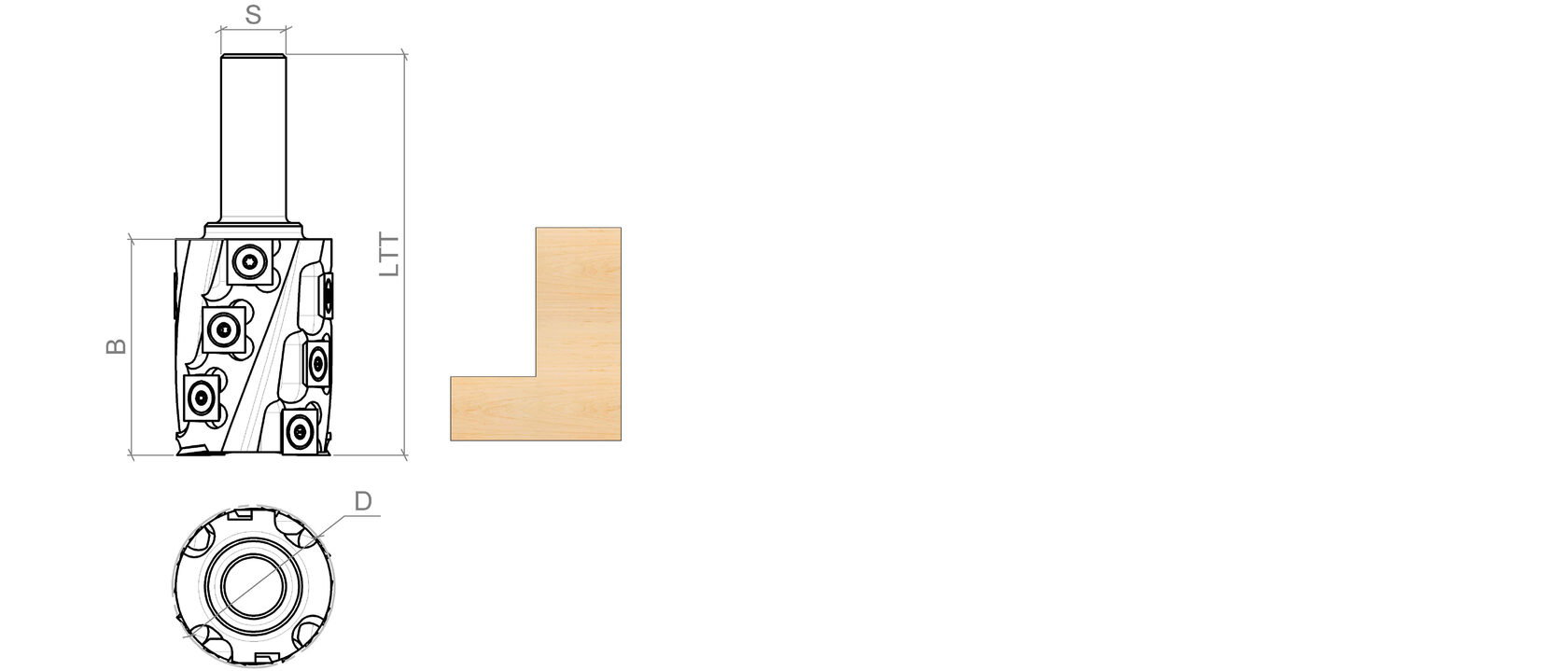

Specifications
- Cutter diameter (d): 125 mm
- Cutting width (b): 50, 60, 80 mm
- Cutting length (ltt): 115–130 mm
- Number of knives (Z): 2
- Knife size: 14×14×2 mm
- Rotation direction: DX/RH (clockwise)
- Body material: aluminum body + steel arbor
- Knife material: tungsten carbide (HW)
- Suitable materials: wood, MDF, chipboard
