Vari-angle bevelling insert router cutter
A0470
Detailed Description
The A0470 cutter is designed for beveling at adjustable angles. Equipped with 1.5 mm thick reversible tungsten carbide inserts. Suitable for processing hardwood, softwood, MDF, and chipboard on CNC routers.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
The A0470 cutter is designed for beveling at adjustable angles. Equipped with 1.5 mm thick reversible tungsten carbide inserts. Suitable for processing hardwood, softwood, MDF, and chipboard on CNC routers.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Type: CNC Router Tools
Description
The A0470 cutter allows for precise beveling at adjustable angles. The 1.5 mm thick reversible tungsten carbide inserts ensure clean cuts and long tool life. Ideal for use on CNC routers when processing various types of wood and board materials.Specifications

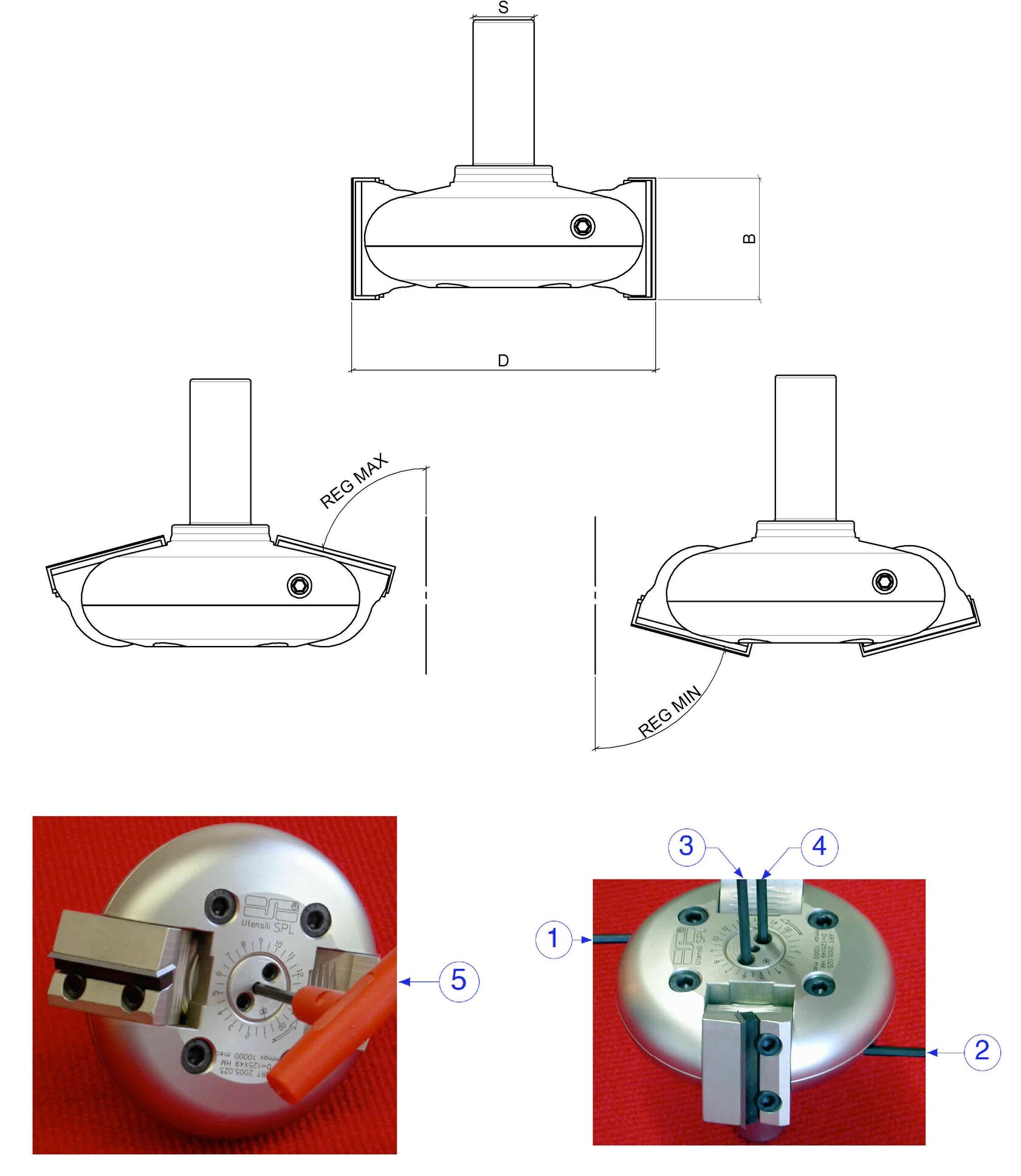

- Cutter diameter (d): 125 mm
- Cutting width (b): 50, 60, 80 mm
- Cutting length (ltt): 115–130 mm
- Number of knives (Z): 2
- Adjustable bevel angle (reg): ±45°, ±60°, ±75°
- Rotation: DX/RH (clockwise), SX/LH (counterclockwise)
- Shank diameter (s): 25 mm
