Profiled cutters for convex quarter circles
A0007
Detailed Description

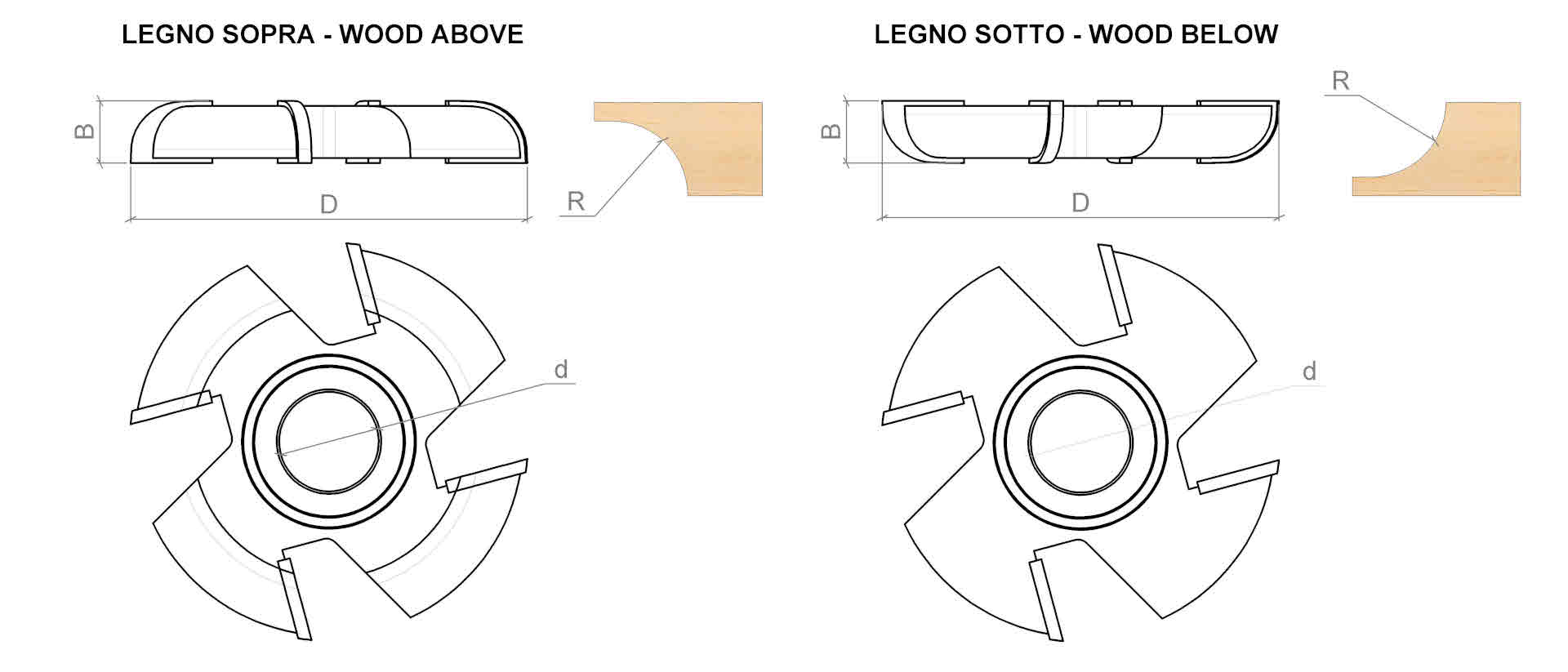

Brazed tungsten carbide cutter (Hc) with four parallel or axially inclined cutting edges for milling convex quarter circles on the upper or lower workpiece surface. Choose Hc for hard, abrasive woods or Hs for soft, knotty woods. Designed for clean cuts and long tool life under continuous use.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Brazed tungsten carbide cutter (Hc) with four parallel or axially inclined cutting edges for milling convex quarter circles on the upper or lower workpiece surface. Choose Hc for hard, abrasive woods or Hs for soft, knotty woods. Designed for clean cuts and long tool life under continuous use.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Brazed Cutters
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Description
The A0007 cutter combines carbide durability with four edges for chip-free convex profiles.• Hc (hard/abrasive woods) or Hs (soft/knotty woods) edge options
• Edges can be parallel or inclined for precise channel height
• Suitable for shaping, copy-shaping and profiling machines
• Quick ISO-30 arbor change, clean cut and extended tool life
Specifications
- Cutting diameter: 140–200 mm
- Shank diameter: 30–50 mm
- Number of edges: 4
- Helix angle (b): 15, 20, 22, 27, 32, 37, 42, 47, 57
- Diameter tolerance: ±0.02 mm
- Profile position: convex, on upper or lower surface
- Body material: steel
- Cutting edge material: Hc (standard) or Hs (on request)
- Compatible machines: copy-shaping, moulders, spindle moulders
- Suitable materials: hardwoods, softwoods
- Recommended feed rate: 1.5–3 m/min
- Recommended RPM: 8,000–12,000 RPM
- Order Info: specify edge material and rotation direction on order
