Profiled brazed cutters
A0005
Detailed Description

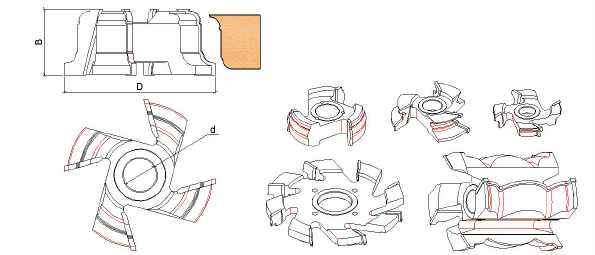

Tungsten carbide cutter with four cutting edges, arranged parallel or inclined per drawing. Hc edges suit hard and abrasive woods; Hs edges for soft, knotty woods. Robust design delivers long tool life and clean cuts even at high spindle speeds.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Tungsten carbide cutter with four cutting edges, arranged parallel or inclined per drawing. Hc edges suit hard and abrasive woods; Hs edges for soft, knotty woods. Robust design delivers long tool life and clean cuts even at high spindle speeds.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Brazed Cutters
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Description
Combines carbide wear resistance with four cutting edges to reproduce complex profiles per drawing.• Choose Hc or Hs edges for different wood types
• Edges can be parallel or axially inclined
• ± 0.02 mm tolerance
• 0° or 15° helix for clean cuts and minimal vibration
• Quick ISO-30 arbor change
Ideal for furniture profiling, decorative moldings and frames.
Specifications
- Cutting diameter: 120–200 mm
- Shank diameter: 30 / 35 / 40 / 50 mm
- Number of edges: 4
- Helix angle: 0° / 15° / 20° / 25° … (on request)
- Diameter tolerance: ± 0.02 mm
- Body material: steel
- Cutting edge material: tungsten carbide (HW)
- Compatibility: copy-shapers, moulders, spindle moulders
- Suitable materials: hardwoods, softwoods, MDF, composites
- Recommended RPM: up to 24,000 RPM
- Recommended feed rate: 1.5–3 m/min
- Tool life: up to 500 m² of profile cut under standard conditions
- Weight: from 0.1 to 1.2 kg (depending on diameter)
