Profiled cutters for concave quarter circles
A0006
Detailed Description

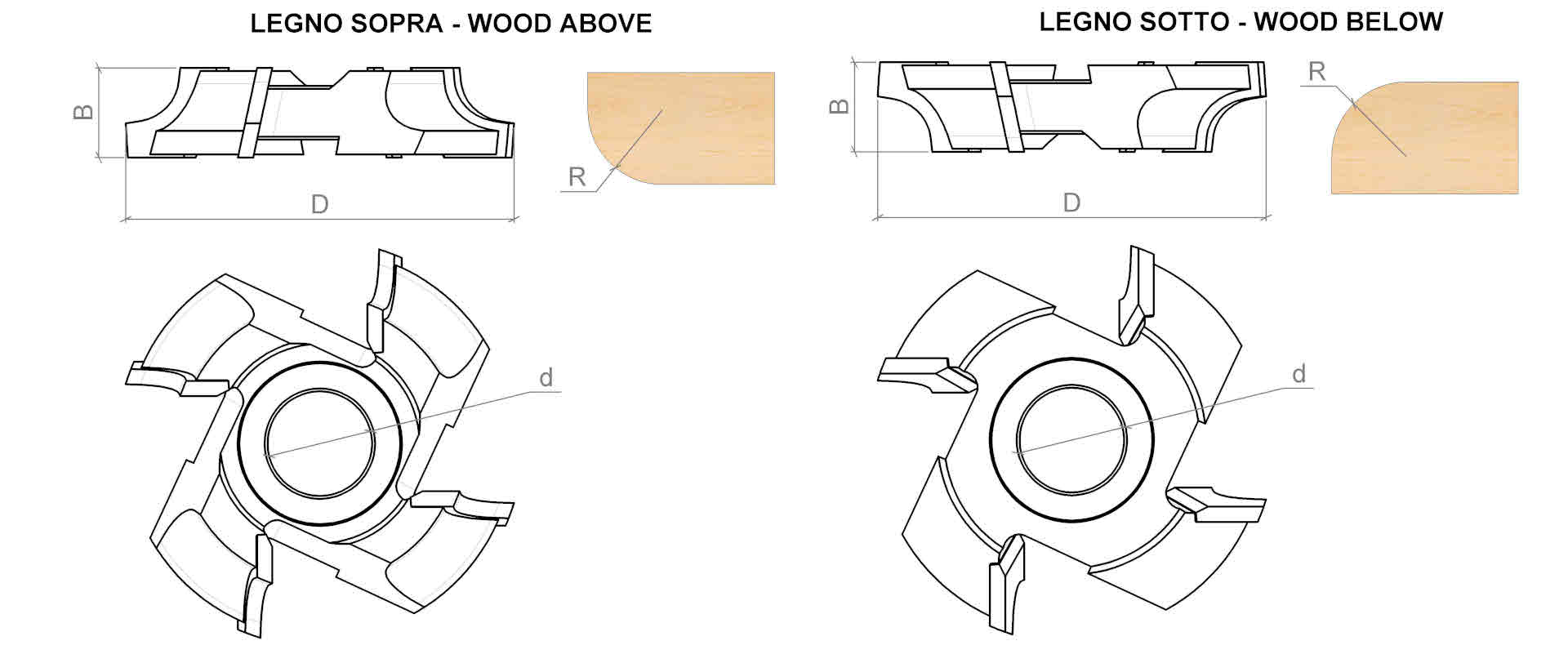

Tungsten carbide cutter with four axially inclined edges, designed for selective milling of concave quarter circles on the workpiece surface. Built to withstand high loads and maintain edge sharpness even under continuous use.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Tungsten carbide cutter with four axially inclined edges, designed for selective milling of concave quarter circles on the workpiece surface. Built to withstand high loads and maintain edge sharpness even under continuous use.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Brazed Cutters
Maximum speed: up to 12,000 RPM
Arbor: ISO-30 arbor
Description
The A0006 cutter combines carbide wear resistance with four edges for a clean, chip-free profile.• Hc (hard woods) or Hs (soft woods) edge options
• Axial-incline helix reduces vibration
• Quick ISO-30 arbor change
Ideal for decorative moldings, frames, and shaped baseboards.
Specifications
- Cutting Diameter: 140–200 mm
- Shank Diameter: 17–62 mm
- Number of Edges: 4
- Profile: concave quarter circle
- Material: tungsten carbide
- Applications: wood, MDF, composites
- RPM Range: 8,000–12,000 RPM
- Feed Rate: 1.5–3 m/min
