Profiled cutters for concave quarter circles
A0301
Detailed Description
Assembly cutter with integral sintered carbide (HW) inserts designed for precise milling of concave quarter circles on the workpiece’s upper surface. Compatible with copy-shapers and profilers. Specify rotation direction when ordering.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Assembly cutter with integral sintered carbide (HW) inserts designed for precise milling of concave quarter circles on the workpiece’s upper surface. Compatible with copy-shapers and profilers. Specify rotation direction when ordering.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: Insert Cutters
Arbor: ISO-30 arbor
Maximum speed: up to 24 000 RPM
Description
Cutter with replaceable HW inserts for clean concave quarter-circle milling.• For use on profilers and copy-shapers
• Z=2 option for higher feed rates
• Specify rotation direction when ordering
Specifications
- Cutting diameter: 160, 190 or 200 mm
- Shank diameter: 20, 30, 40 or 60 mm
- Number of inserts (Z): 2

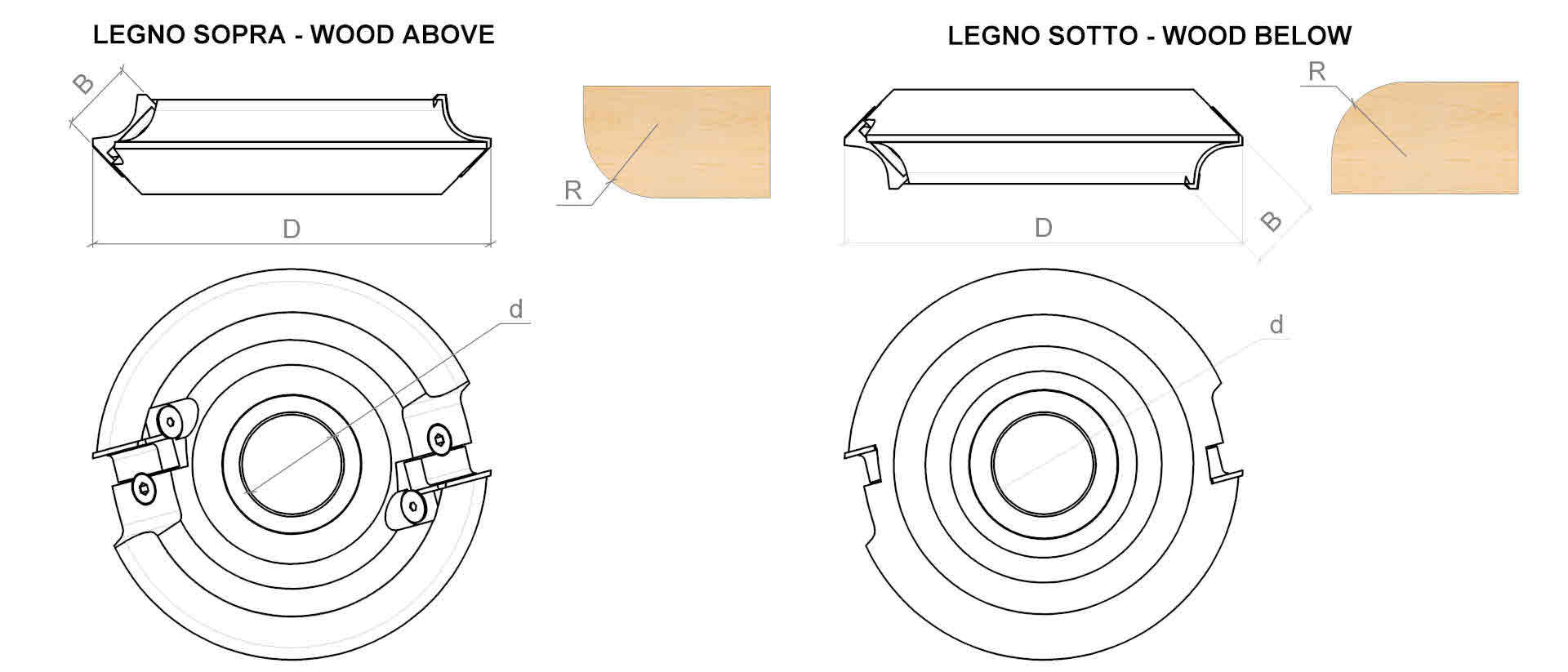

- Profile position: concave quarter circle, wood above
- Body material: steel
- Cutting edge material: HW (tungsten carbide)
- Suitable materials: hardwoods, softwoods, MDF
- Recommended RPM: 8,000–12,000 RPM
- Recommended feed rate: 1–3 m/min
