Insert router cutters simple shapes Z=2
A0475
Detailed Description
Assembly cutter with two integral HW (tungsten carbide) knives, 2 mm thick. Designed for selective profiling of simple shapes (straight edge, chamfer, quarter-circle) on all types of wood, chipboard, MDF, and composites. Quick knife change via ISO-30 arbor simplifies setup.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Assembly cutter with two integral HW (tungsten carbide) knives, 2 mm thick. Designed for selective profiling of simple shapes (straight edge, chamfer, quarter-circle) on all types of wood, chipboard, MDF, and composites. Quick knife change via ISO-30 arbor simplifies setup.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Arbor: ISO-30 arbor
Type: CNC Router Tools
Maximum speed: up to 24 000 RPM
Description
Cutter features two 2 mm HW knives ideal for simple shapes: straight edges, chamfers, and quarter-circles.• Used on CNC routers for fine edge profiling
• Supported shapes: straight, chamfer, quarter-circle
• Specify desired shape, drawing or sample, and rotation direction when ordering
• Quick knife swaps via ISO-30 arbor

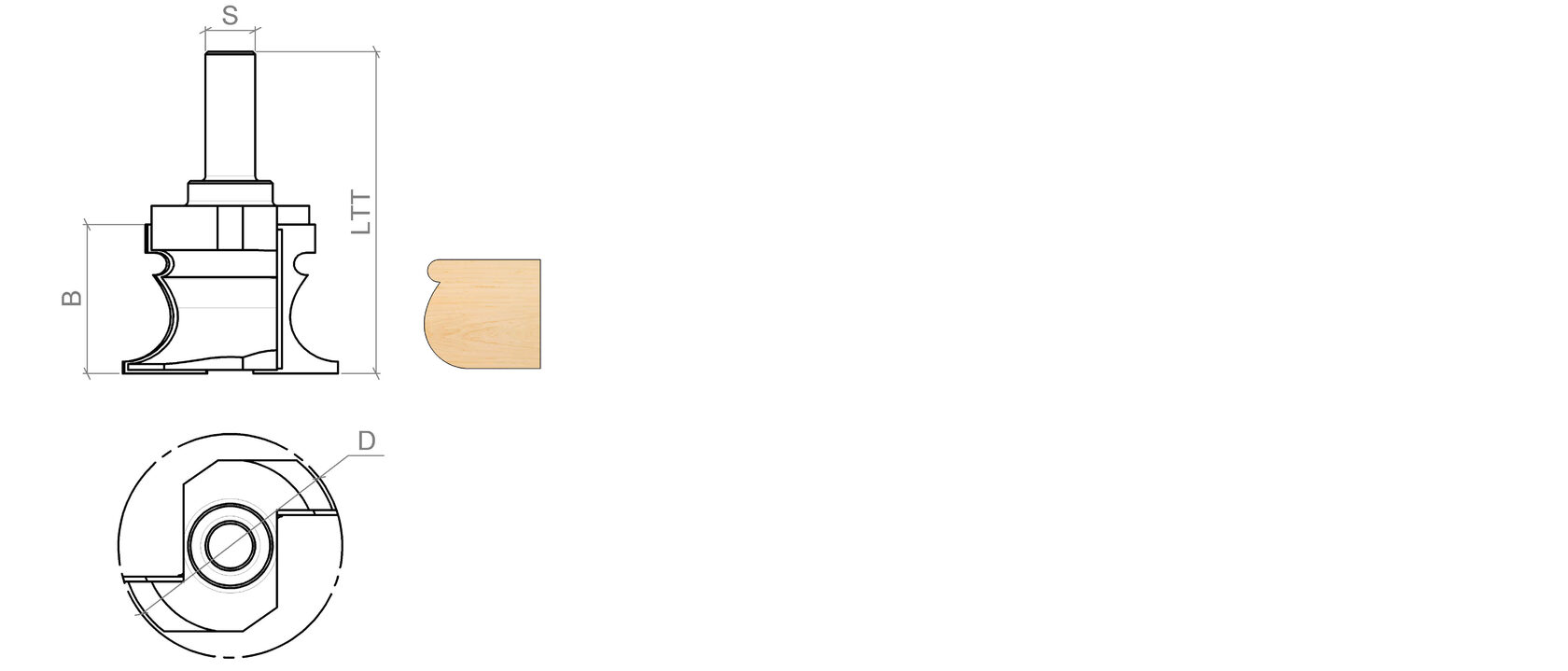

Specifications
- Cutting diameter (d): 40, 60, 80 or 100 mm
- Cutter width (b): 20, 30, 40, 50 or 60 mm
- Cutting length (ltt): 80–120 mm (depending on d and b)
- Number of edges (Z): 2
- Rotation: DX/RH (clockwise)
- Shank diameter (s): 20 mm
