Multicut spiral cutters for planing Z=12
A0105
Detailed Description
Multicut spiral cutter with 12 fractioned cutting wings in brazed tungsten carbide (HW) and two starting helices. The light steel body (–50 % mass) reduces machine stress and ensures long tool life. Suitable for soft and hard timbers and glued panels.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Multicut spiral cutter with 12 fractioned cutting wings in brazed tungsten carbide (HW) and two starting helices. The light steel body (–50 % mass) reduces machine stress and ensures long tool life. Suitable for soft and hard timbers and glued panels.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Arbor: Brazed fixing
Type: Multicut Spiral Cutters
Maximum speed: up to 24 000 RPM
Description
12 fractioned edges arranged in a spiral provide chip-free finishing.• Lightened body reduces machine load
• Suitable for planing hard and soft woods, as well as glued panels
• Variants with Z=8 and four helices available upon request
Order Info: Indicate dimensions of grooves and keys if present.

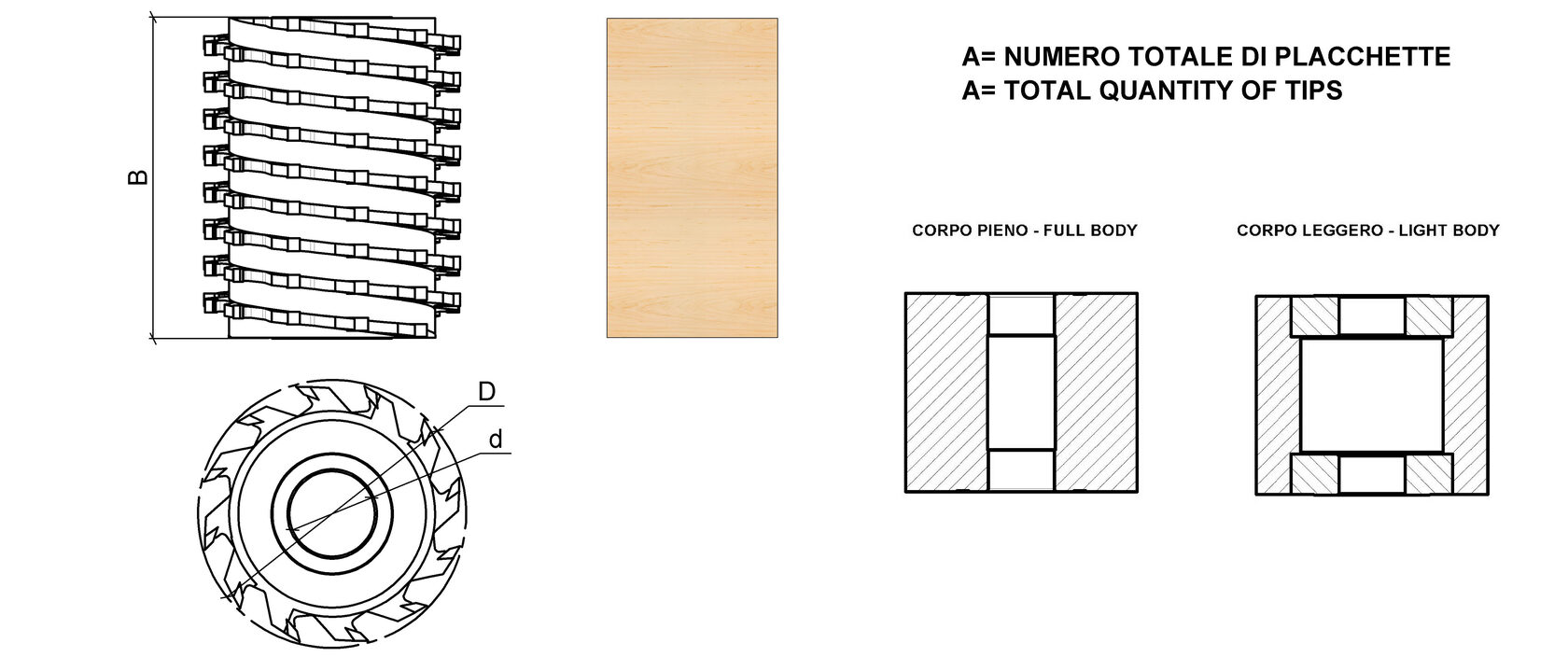

Specifications
- Cutting diameter (d): 100 / 125 / 140 mm
- Cutter width (b): from 80 to 310 mm
- Number of cutting edges (Z): 12
- Body material: steel (lightened or full)
- Cutting edge material: tungsten carbide (HW)
- Suitable materials: hard wood, soft wood, glued panels
- Compatible machines: moulder, spindle moulder
