Multicut spiral router bits for edge
A0415
Detailed Description

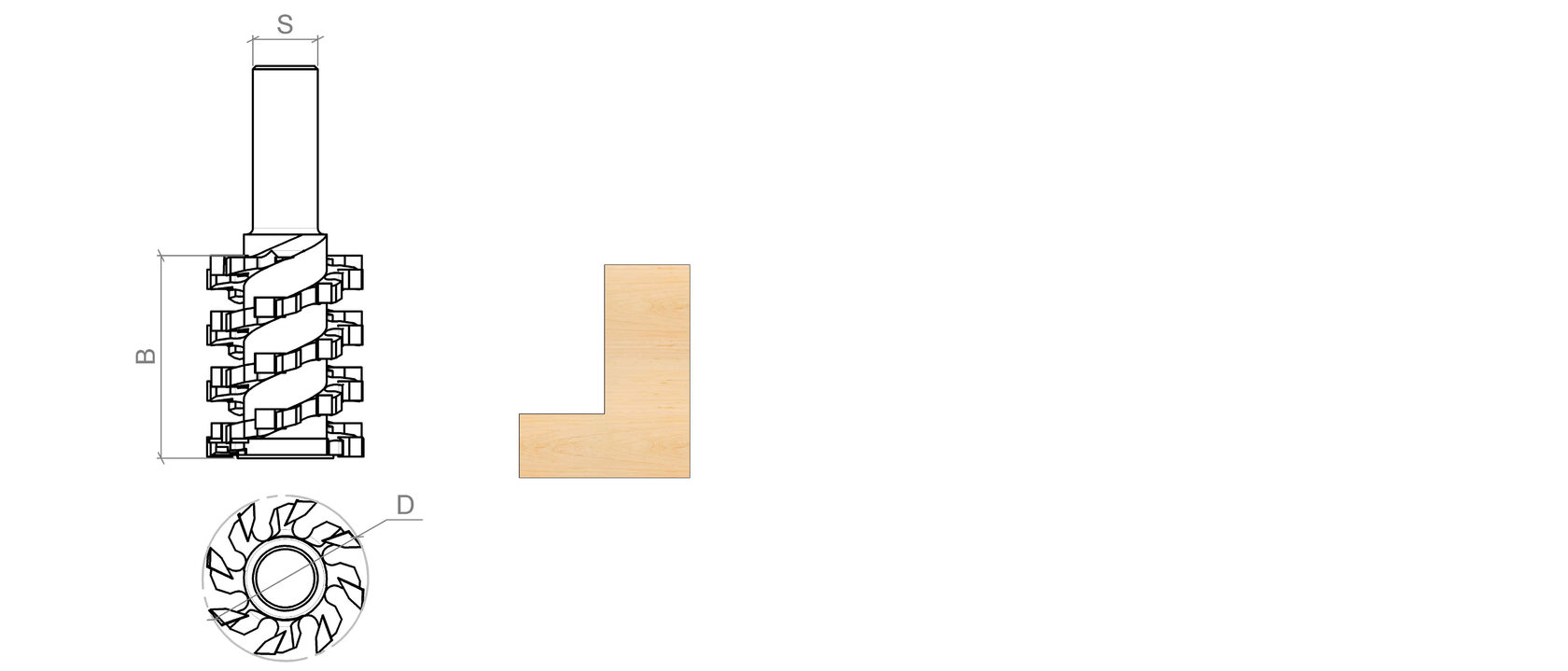

Spiral router bits featuring eight fractioned cutting edges in brazed tungsten carbide (HW), arranged in a spiral to reduce noise, energy consumption, and enable higher feed rates. Designed for fine edging on hardwood, softwood, plywood, and MDF.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Spiral router bits featuring eight fractioned cutting edges in brazed tungsten carbide (HW), arranged in a spiral to reduce noise, energy consumption, and enable higher feed rates. Designed for fine edging on hardwood, softwood, plywood, and MDF.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: CNC Router Tools
Maximum speed: up to 18,000 RPM
Arbor: ISO-30 arbor
Description
Eight fractioned edges deliver chip-free finishes, while the spiral layout minimizes vibration and spindle load.• Fine edging on wood, plywood, and MDF
• Higher feed rates thanks to reduced vibration
• Compatibility with CNC routers and hand-held routers
Order Info: specify cutting diameter, length, and rotation direction (DX/RH).
Specifications
- Cutting diameter: 50 mm
- Shank diameter: 60 / 100 / 120 mm
- Cutting length (ltt): 122 / 162 / 182 mm
- Number of edges: 8
- Rotation direction: DX/RH (clockwise)
- Body material: steel
- Cutting edge material: tungsten carbide (HW)
- Suitable materials: hardwood, softwood, plywood, MDF
