Insert router cutters to edge Z=2+2 RI
A0465
Detailed Description
The A0465 cutter features two integral HW (1.5 mm) inserts plus two Ri inserts, designed for precise edge and rebate work on hard, soft, glued wood, chipboard, and MDF. Ideal for CNC routers, it delivers clean cuts and long tool life.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
The A0465 cutter features two integral HW (1.5 mm) inserts plus two Ri inserts, designed for precise edge and rebate work on hard, soft, glued wood, chipboard, and MDF. Ideal for CNC routers, it delivers clean cuts and long tool life.
Other configurations available: shape, radius, fitting and diameter. To learn more — send an inquiry or call us.
Type: CNC Router Tools
Maximum speed: up to 24 000 RPM
Arbor: ISO-30 arbor
Description
Two 1.5 mm HW inserts combined with two Ri inserts ensure chip-free edge and rebate profiling.• Specialized for edges and rebates
• Suitable for hardwood, softwood, glued panels, chipboard, MDF
• Used on CNC routers
• Specify desired diameter, length, and rotation direction when ordering

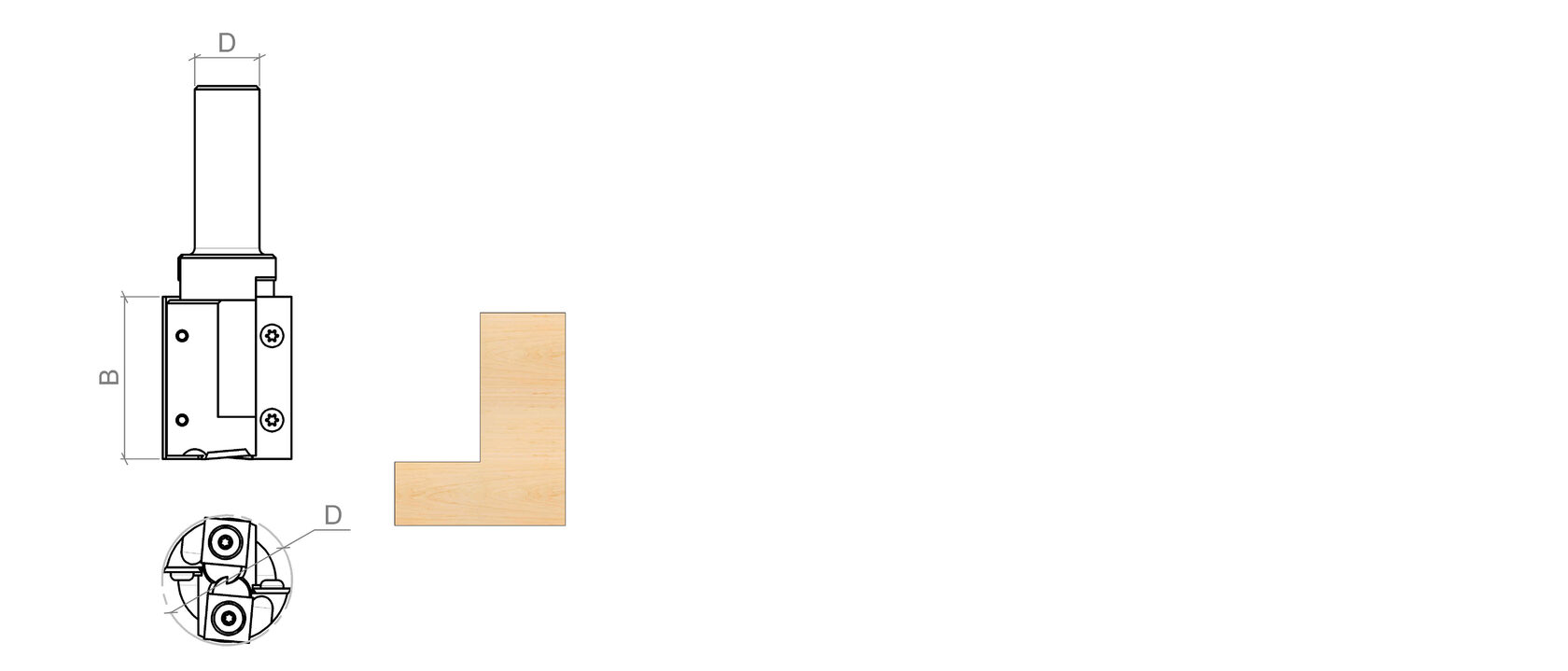

Specifications
- Cutting diameter (d): 40 mm
- Shank diameter (s): 20 mm
- Cutting width (b): 50 mm, 60 mm, 80 mm
- Cutting length (ltt): 115–146 mm
- Number of edges (Z): 2 HW + 2 Ri
- Rotation: DX/RH (clockwise)
- Body material: steel
- Cutting edge material: HW + Ri inserts
- Suitable materials: hardwood, softwood, glued panels, chipboard, MDF
- Compatible machines: CNC routers
